中华医学超声杂志(电子版) ›› 2026, Vol. 23 ›› Issue (05) : 387 -393. doi: 10.3877/cma.j.issn.1672-6448.2026.05.008

超声医学教育培训

参与临床科研对心脏超声住院医师规范化培训教学效果的价值
邢长洋1, 卜特2, 赵舒恬1, 祁媛玺2, 文立伟1, 袁丽君1, 雷玉嘉3,()
  1. 1 710038 西安,空军军医大学唐都医院超声医学科
    3 710038 西安,空军军医大学唐都医院毕教办
    2 116011 辽宁大连,联勤保障部队第九六七医院
  • 收稿日期:2026-01-01 出版日期:2026-05-01
  • 通信作者: 雷玉嘉
  • 基金资助:
    国家自然科学基金(82471989); 空军军医大学教学研究课题重点项目(B-YKT202201); 空军军医大学唐都医院学科助推计划(2025XMPT011)

Impact of clinical research engagement on teaching quality in standardized cardiac ultrasound training for residents

Changyang Xing1, Te Bu2, Shutian Zhao1, Yuanxi Qi2, Liwei Wen1, Lijun Yuan1, Yujia Lei3,()

  1. 1 Department of Ultrasound Medicine,Tangdu Hospital, Air Force Medical University, Xi’an 710038, China
    3 Post-Graduation Education Office, Tangdu Hospital, Air Force Medical University, Xi’an 710038, China
    2 Logistics Support Force No. 967 Hospital, Dalian 116011, China
  • Received:2026-01-01 Published:2026-05-01
  • Corresponding author: Yujia Lei
引用本文:

邢长洋, 卜特, 赵舒恬, 祁媛玺, 文立伟, 袁丽君, 雷玉嘉. 参与临床科研对心脏超声住院医师规范化培训教学效果的价值[J/OL]. 中华医学超声杂志(电子版), 2026, 23(05): 387-393.

Changyang Xing, Te Bu, Shutian Zhao, Yuanxi Qi, Liwei Wen, Lijun Yuan, Yujia Lei. Impact of clinical research engagement on teaching quality in standardized cardiac ultrasound training for residents[J/OL]. Chinese Journal of Medical Ultrasound (Electronic Edition), 2026, 23(05): 387-393.

目的

对比融入临床科研实践的住院医师规范化培训(简称规培)与常规临床规培的教学效果,明确参与临床科研对心脏超声规培教学效果的价值。

方法

纳入自2023年9月至2025年11月在空军军医大学唐都医院超声医学科进行超声专业规培的学员36名,随机分为科研规培组19人和临床规培组17人。采用两阶段教学培训模式,基础培训阶段2组培训内容和形式(30例临床心脏超声训练)无差别;差异培训阶段(50例心脏超声训练),科研规培组参与科研项目留图需≥25例,临床规培组仍采用常规规培带教。在两阶段培训结束后,由2名带教教员对所留取的切面图像进行评分,取2人评分的平均值,采用独立样本t检验比较2组切面评分的差异;采用组内相关系数(ICC)评价2组学员同带教教员相对照的测值准确性;通过问卷调查2组学员在培训后对超声临床科研的兴趣程度,并采用χ2检验比较组间差异。

结果

基础培训阶段后,2组学员各超声指标测值准确性ICC无明显差别,切面评分差异也无统计学意义[(3.29±0.49)分 vs(3.27±0.48)分,P>0.05];差异培训阶段后,科研规培组学员左心室舒张末期内径、左心室收缩末期内径、左心室流出道内径、二尖瓣环a峰速度、双平面左心室射血分数、左心房容积和左心室整体纵向应变测值准确性更优,其ICC高于临床规培组,且科研规培组切面评分高于临床规培组[(3.63±0.25)分 vs(3.43±0.27)分],差异具有统计学意义(t=2.308,P=0.027)。两阶段培训结束后,科研规培组对超声临床科研的兴趣程度高于临床规培组(73.7% vs 29.4%),差异具有统计学意义(χ2=7.442,P=0.024)。

结论

参与心脏超声临床科研能够显著提高学员的切面扫查规范性和测值准确性,并增强了科研兴趣,提升了规培教学效果。

Objective

To clarify the value of clinical research engagement for the teaching quality of cardiac ultrasound standardized training by comparing the teaching effectiveness of standardized training for resident physicians integrated with clinical research participation versus conventional clinical training.

Methods

A total of 36 residents enrolled in the standardized training program of the Department of Ultrasound Medicine at Tangdu Hospital, Air Force Medical University, from September 2023 to November 2025, were randomly divided into a research training group (19 residents) and a clinical training group (17 residents). A two-stage training approach was adopted. During the basic training stage (30 clinical cardiac ultrasound cases), both groups received identical training. During the differential training stage (50 cardiac ultrasound cases), the research training group participated in research projects requiring image acquisitions (≥25 cases), whereas the clinical training group followed conventional training. After the two-stage process, two instructors scored the sectional images acquired by the residents, and the average score was calculated; inter-group score comparions were performed using independent sample t-tests. The intra-group correlation coefficient (ICC) was used to evaluate the measurement accuracy of the two groups of residents relative to the supervising instructors. Residents' interest in cardiac ultrasound research was assessed and compared between the two groups via questionnaires, with differences analyzed using the χ2 test.

Results

After the basic training stage, no significant differences were observed between the two groups in either measurement accuracy (as reflected by ICC for all parameters) or view scores (3.29±0.49 vs 3.27±0.48, P>0.05) . After the differential training stage, the research group demonstrated superior ICC values compared to the clinical group for left ventricular end-diastolic dimension, left ventricular end-systolic dimension, left ventricular outflow tract dimension, mitral annulus a-wave, biplane left ventricular ejection fraction, left atrial volume, and global longitudinal strain. Additionally, the research training group achieved significantly higher view scores than the clinical training group (3.63±0.25 vs 3.43±0.27, t=2.308, P=0.027). After completion of both training stages, the research training group exhibited a significantly greater interest in ultrasound clinical research than the clinical training group (73.7% vs 29.4%, χ2=7.442, P=0.024).

Conclusion

Participation in cardiac ultrasound clinical research can significantly enhance residents' image view standardization and measurement accuracy, as well as increase their research interests, thereby improving the overall teaching effectiveness of standardized training.

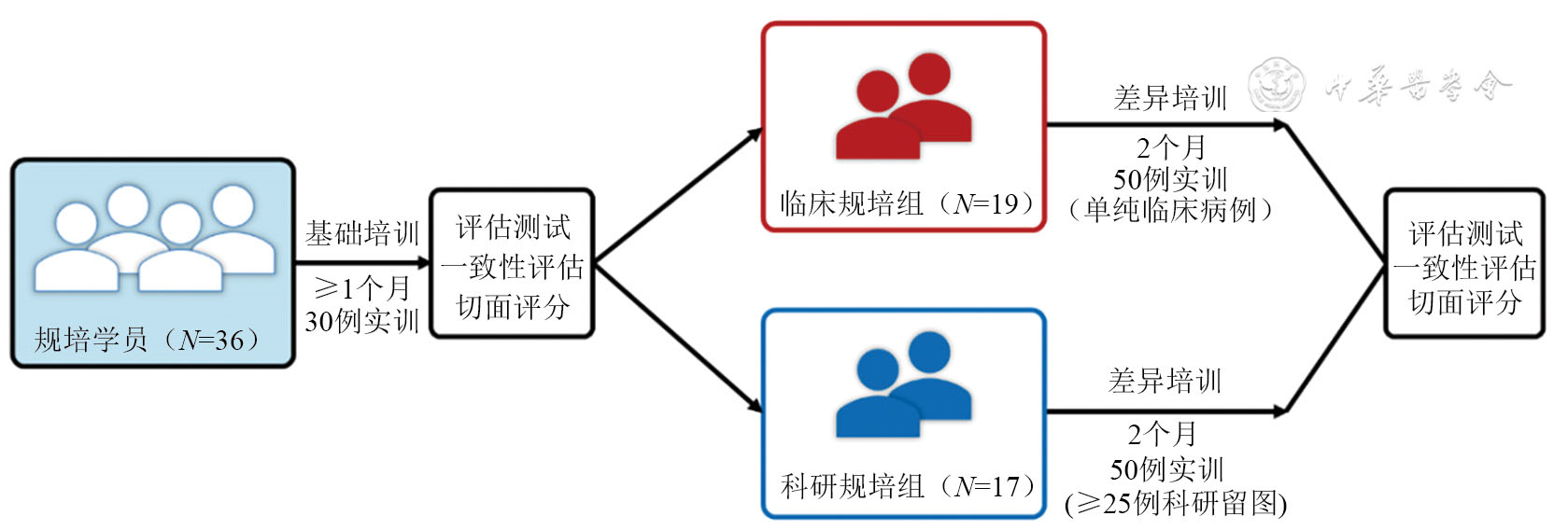

图1 科研规培与传统临床规培对照研究设计
表1 学员心脏超声检查测试切面和指标
表2 2组学员不同培训阶段心脏超声检查切面图像评分比较(分,
±s

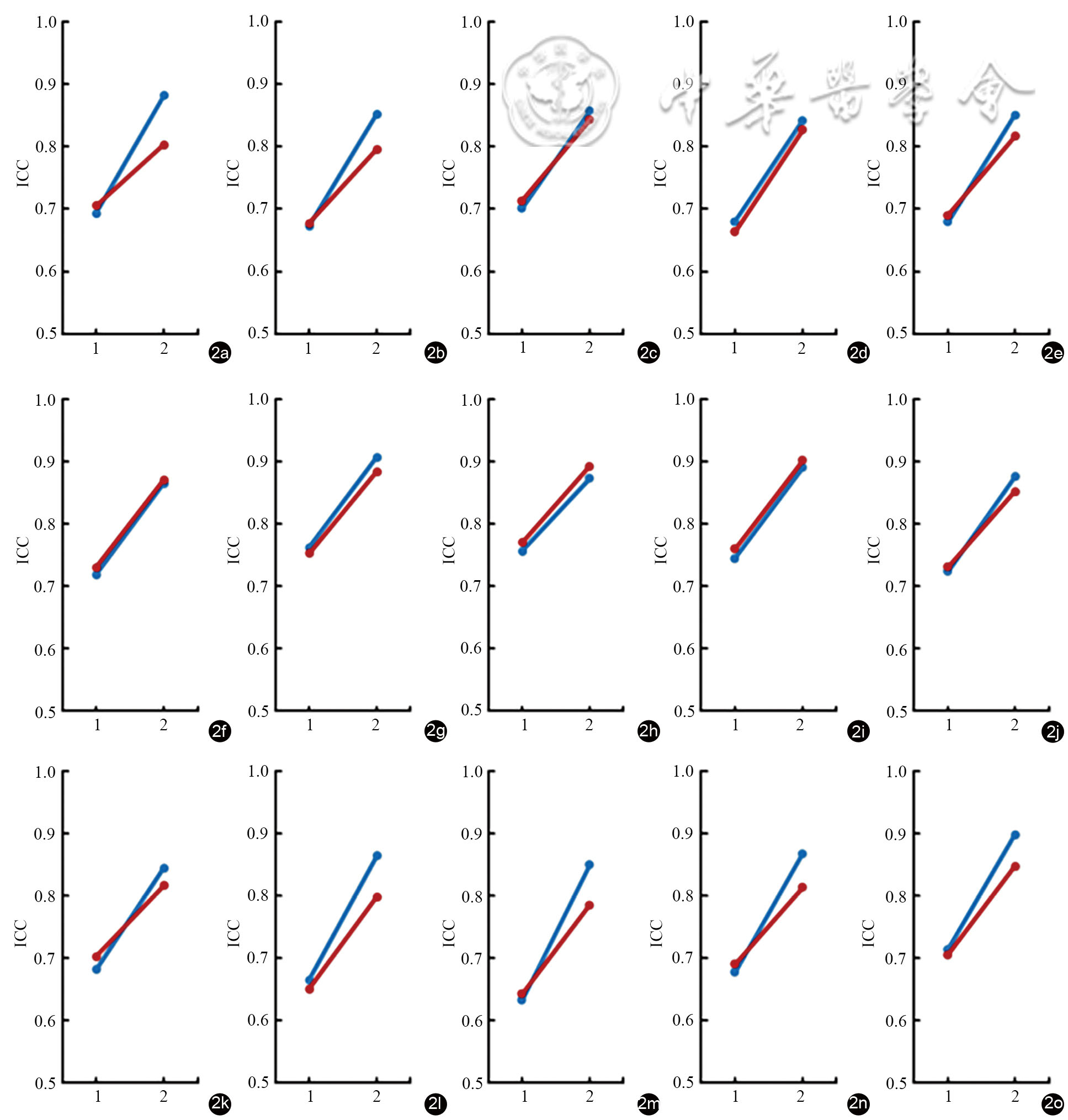

图2 基础培训后和差异培训后2组不同超声指标的组内相关系数(ICC)变化。图a~o分别为左心室舒张末期内径、左心室收缩末期内径、室间隔舒张末期厚度、左心室后壁舒张末期厚度、左心室流出道内径、左心房前后径、肺动脉主干内径、肺动脉血流峰值速度、二尖瓣口E峰血流速度、二尖瓣口A峰血流速度、二尖瓣环e峰速度、二尖瓣环a峰速度、双平面左心室射血分数、左心房容积、左心室整体纵向应变的学员与教员ICC变化图 注:横轴1代表基础培训后测试,2代表差异培训后测试。蓝色为科研规培组,红色为临床规培组
表3 2组学员对超声科研感兴趣程度比较[人(%)]
1
Mitchell C, Rahko PS, Blauwet LA, et al. Guidelines for Performing a Comprehensive Transthoracic Echocardiographic Examination in Adults: Recommendations from the American Society of Echocardiography[J]. J Am Soc Echocardiogr, 2019, 32(1): 1-64.
2
中华医学会超声医学分会超声心动图学组. 中国成年人超声心动图检查测量指南[J]. 中华超声影像学杂志, 2016, 25(8): 645-666.
3
王益佳, 周青, 曹省, 等. 中国经胸超声心动图检查存图及报告质控现状分析 [J/OL]. 中华医学超声杂志(电子版), 2024, 21(7): 657-663.
4
邢长洋, 胡伟, 陈慧芸, 等. 斑点追踪超声心动图在室壁运动评估自主教学中的应用 [J/OL]. 中华医学超声杂志(电子版), 2023, 20(2): 200-206.
5
Zhang X, Zhang Y, Tan B, et al. A Revised Grading Scheme for Secondary Tricuspid Valve Regurgitation[J]. J Am Soc Echocardiogr, 2026, 39(1): 58-67.
6
Qiu S, Zhang Y, Hou Y, et al. Integrative speckle-tracking echocardiography for the early detection and prediction of cancer therapy-related cardiac dysfunction[J]. Cardiooncology, 2025, 11(1): 73.
7
邢长洋, 雷玉嘉, 陈庆, 等. 超声科住院医师规范化培训实践考核量化评分方案探讨[J]. 临床超声医学杂志, 2019, 21(7): 550-551.
8
Bunting KV, Steeds RP, Slater K, et al. A practical guide to assess the reproducibility of echocardiographic measurements[J]. J Am Soc Echocardiogr, 2019, 32(12): 1505-1515.
9
Chan J, Shiino K, Obonyo NG, et al. Left ventricular global strain analysis by two-dimensional speckle-tracking echocardiography: the learning curve[J]. J Am Soc Echocardiogr, 2017, 30(11): 1081-1090.
10
Edwards NFA, Lau K, Sophios R, et al. The learning curve for left atrial strain analysis[J]. J Am Soc Echocardiogr, 2024, 37(10): 1014-1016.
11
de Vet CM, Nichting TJ, Fransen AF, et al. Two-dimensional fetal speckle tracking; a learning curve study for offline strain analysis[J]. PLoS One, 2024, 19(11): e0310307.
12
马璐璐, 谭刚. 科研培训作为临床住院医师规培的必要性、困难和解决途径[J]. 基础医学与临床, 2020, 40(9): 1303-1305.
13
兰学立, 向阳. 住院医师规范化培训中的临床思维培养[J]. 中华医学教育杂志, 2025, 45(5): 338-343.
14
王若蛟, 王亚红, 赵瑞娜, 等. 多元化教学方法在超声住院医师规范化培训中的应用 [J/OL]. 中华医学超声杂志(电子版), 2023, 20(2): 143-145.
15
吴文雪, 林晓泼, 吴道刻, 等. 视频反馈教学方法在住院医师规范化培训基本操作技能培训中的应用[J]. 浙江医学教育, 2025, 24(1): 39-43.
16
张志华, 仲露, 季凯. 自我决定理论视域下和谐导学关系模式构建研究[J]. 研究生教育研究, 2025(6): 12-18.
