2025 , Vol. 22 >Issue 05: 462 - 469
DOI: https://doi.org/10.3877/cma.j.issn.1672-6448.2025.05.012
双胎贫血-红细胞增多序列征的产前超声特征分析
Copy editor: 吴春凤
收稿日期: 2025-02-18
网络出版日期: 2025-07-17
基金资助
重庆市科卫联合医学科研项目（2025MSXM010）
版权
Prenatal ultrasonographic features of twin anemia-polycythemia sequence: analysis of 26 cases
Received date: 2025-02-18
Online published: 2025-07-17
Copyright
目的
探讨双胎贫血-红细胞增多序列征（TAPS）的产前超声特征及预后。
方法
回顾性分析2017 年7 月至2024 年12 月在重庆医科大学附属妇女儿童医院行超声检查诊断为TAPS的26 例病例的产前超声特征、治疗方式及妊娠结局。
结果
26 例均为单绒毛膜双胎，诊断为原发性TAPS。共有的产前超声特征为：（1）供血儿大脑中动脉峰值流速（MCA-PSV）＞1.5 中位数倍数（MoM），受血儿MCA-PSV＜1.0 MoM；（2）“黑白”胎盘。其他超声特征包括：（1）受血儿肝呈“星空征”；（2）供血儿肠道回声增强；（3）心脏异常；（4）多普勒血流指标异常；（5）胎儿水肿；（6）脐带异常；（7）羊水量不均衡；（8）合并选择性宫内生长受限、双胎输血综合征等。26 例中，13例选择射频消融减胎术（存活率92%），5 例选择胎儿镜下胎盘血管交通支凝固术（存活率100%），7例选择期待治疗（存活率64%），1 例引产。
结论
单绒毛膜双胎在超声检查时需要特别关注胎儿多普勒血流指标、胎盘情况、肝及肠道回声等。没有行宫内治疗的TAPS 双胎预后相对差，一旦诊断TAPS，建议转诊到有宫内治疗条件的三级产前诊断中心诊治。
关键词： 单绒毛膜双胎; 双胎贫血-红细胞增多序列征; 产前超声; 宫内治疗
王彦 , 张晓航 , 冉素真 , 钟春燕 , 张晋炜 , 王希 . 双胎贫血-红细胞增多序列征的产前超声特征分析[J]. 中华医学超声杂志（电子版）, 2025 , 22(05) : 462 -469 . DOI: 10.3877/cma.j.issn.1672-6448.2025.05.012
Objective
To explore the prenatal ultrasound features and prognosis of twin anemiapolycythemia sequence (TAPS).
Methods
A retrospective analysis was conducted on 26 twins diagnosed with TAPS by prenatal ultrasound at the Women and Children’s Hospital of Chongqing Medical University from July 2017 to December 2024, focusing on their prenatal ultrasound features, treatment methods, and pregnancy outcomes.
Results
All 26 cases were monochorionic twins, and all were diagnosed with primary TAPS.Common prenatal ultrasound features included: (1) peak systolic velocity of the middle cerebral artery (MCA-PSV) > 1.5 multiples of the median (MoM) in the donor twin and < 1.0 MoM in the recipient twin; and (2) “black and white” placenta.Other ultrasound features included: (1) “starry sky” sign in the recipient twin’s liver; (2) enhanced intestinal echogenicity in the donor twin; (3) cardiac abnormalities;(4) abnormal Doppler blood flow indices; (5) fetal hydrops; (6) umbilical cord abnormalities; (7) uneven amniotic fluid volume; and (8) coexisting selective intrauterine growth restriction, twin to twin transfusion syndrome, etc.Among the 26 cases, 13 underwent radiofrequency ablation for fetal reduction (survival rate 92%), 5 underwent fetoscopic coagulation of placental vascular anastomoses (survival rate 100%), 7 received expectant management (survival rate 64%), and 1 underwent induced labor.
Conclusion
In ultrasound examinations of monochorionic twins, special attention should be paid to fetal Doppler blood flow indicators,placental conditions, liver and intestinal tract echoes, etc.The prognosis of TAPS twins without intrauterine treatment is relatively poor.Once TAPS is diagnosed, it is recommended to refer the patient to a tertiary prenatal diagnosis center with intrauterine treatment conditions for diagnosis and treatment.
±s 表示。超声特征、治疗方式和妊娠结局为计数资料，以例数（%）表示，采用χ2 检验比较供血儿与受血儿超声参数之间的差异。P＜0.05 为差异具有统计学意义。表1 26 例双胎贫血-红细胞增多序列征胎儿产前超声表现 |
| 超声表现 | 分期（例） | 合计[例（%）] | |||
|---|---|---|---|---|---|
| I期（n=11） | II期（n=3） | III期（n=3） | IV期（n=9） | ||
| “黑白”胎盘 | 11 | 3 | 3 | 9 | 26 (100) |
| 受血儿肝呈“星空征” | 11 | 2 | 2 | 9 | 24 (92) |
| 供血儿肠道回声增强 | 0 | 0 | 1 | 3 | 4 (15) |
| 心脏异常 | 9 | 1 | 3 | 9 | 22 (85) |
| 多普勒血流异常 | 9 | 1 | 3 | 5 | 18 (69) |
| 胎儿水肿 | 0 | 0 | 0 | 9 | 9 (34) |
| 羊水量不均衡 | 9 | 0 | 1 | 5 | 15 (57) |
| 脐带异常 | 10 | 2 | 2 | 5 | 19 (73) |
| 合并 sIUGR、TTTS | 6 | 1 | 3 | 5 | 15 (57) |
| 合并其他结构畸形 | 1 | 0 | 0 | 2 | 3 (12) |
注：sIUGR 为选择性宫内生长受限，TTTS 为双胎输血综合征 |
表2 26 例双胎贫血-红细胞增多序列征供血儿与受血儿超声表现对比[例（%）] |
| 项 目 | 供血儿(n=26) | 受血儿(n=26) | x² 值 | P值 |
|---|---|---|---|---|
| 肝呈“星空征” | 0(0) | 24(92) | 44.571 | <0.001 |
| 肠道回声增强 | 4(15) | 0(O) | 4.333 | 0.037 |
| 胎儿水肿 | 9(34) | 1(3) | 7.924 | 0.005 |
| 心胸比增大 | 16(61) | 5(19) | 9.665 | 0.002 |
| 房室瓣反流或频谱单峰 | 11(42) | 7(27) | 1.359 | 0.244 |
| 多普勒血流异常 | 10(26) | 14(54) | 1.238 | 0.266 |
| 脐带水肿 | 0(0) | 6(23) | 6.783 | 0.009 |
| 脐带插入点异常 | 11(42) | 9(34) | 0.325 | 0.569 |
| 羊水量异常 | 8(30) | 11(42) | 0.746 | 0.388 |

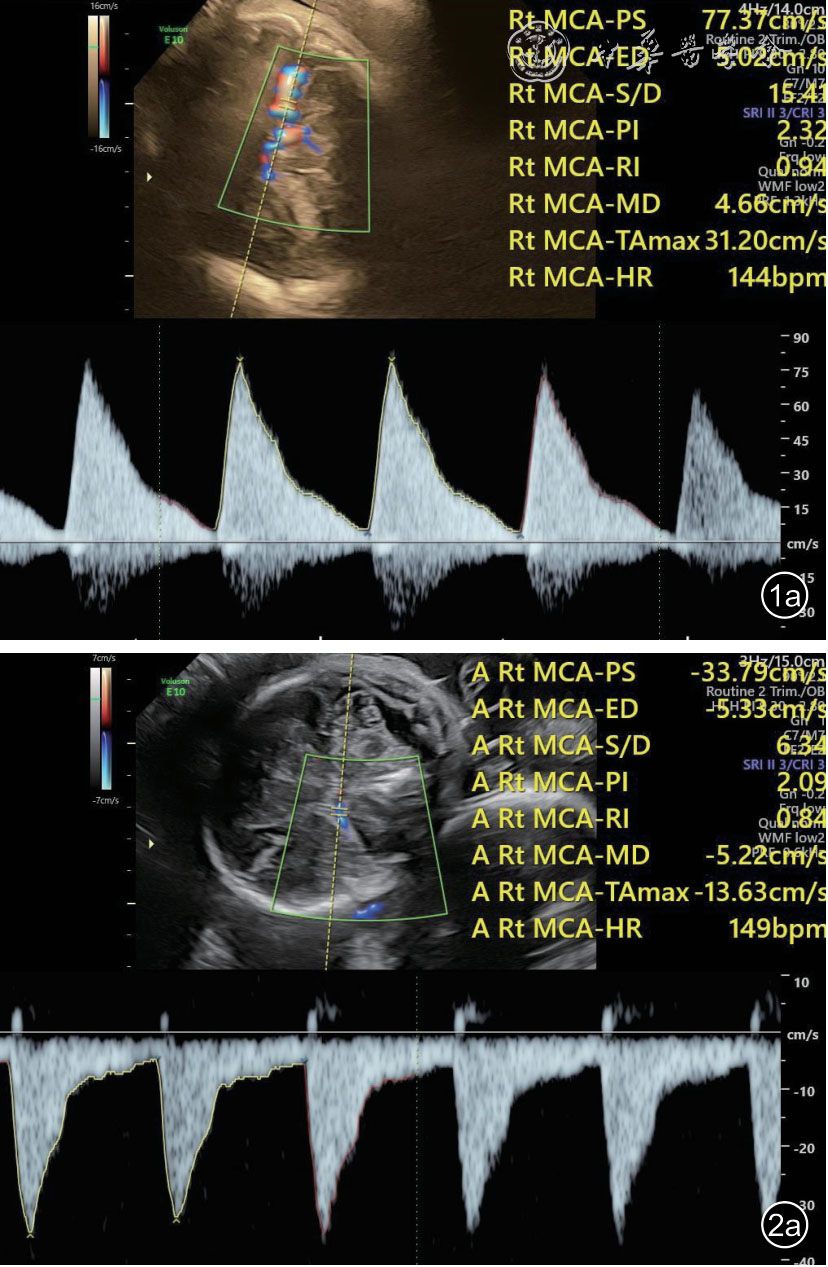

图1 双胎贫血-红细胞增多序列征胎儿孕29+1周产前超声图像。图a：供血儿大脑中动脉峰值流速（MCA-PSV）增高，约1.61 中位数倍数（MoM）；图b：受血儿MCA-PSV 降低，约0.87 MoM |

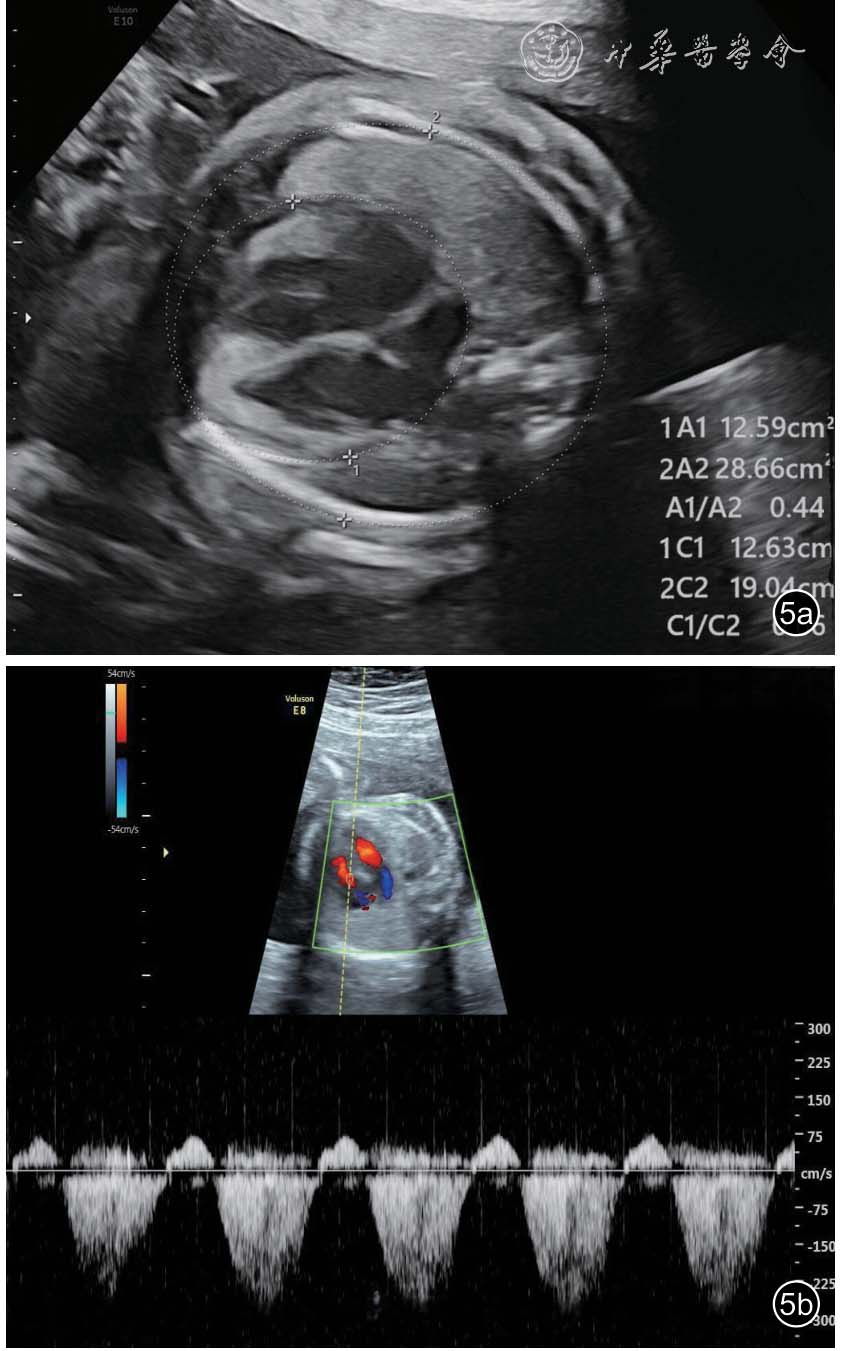

图5 双胎贫血-红细胞增多序列征胎儿孕23+5 周产前超声图像。图a：可见供血儿心胸比增大（约为0.44）；图b：彩色多普勒可见二尖瓣、三尖瓣轻度反流束，连续多普勒测及反流速度约为2.7 m/s |
表3 双胎贫血-红细胞增多序列征胎儿治疗方式及预后 |
| 治疗方式 | 分期 | 例数 | 合并 sIUGR、TTTS | 存活率[%(例/例)] |
|---|---|---|---|---|
| 胎儿镜下胎盘血管吻合支激光凝固术 | I | 3 | 1 | 100 (6/6) |
| II | 0 | 0 | - | |
| III | 0 | 0 | - | |
| IV | 2 | 0 | 100 (4/4) | |
| 射频消融减胎术 | I | 7 | 4 | 86 (6/7) |
| II | 1 | 0 | 100 (1/1) | |
| III | 3 | 3 | 100 (3/3) | |
| IV | 2 | 2 | 100 (2/2) | |
| 期待治疗 | I | 1 | 1 | 0 (0/2) |
| II | 2 | 1 | 100 (4/4) | |
| III | 0 | 0 | - | |
| IV | 4 | 2 | 63 (5/8) |
注：sIUGR 为选择性宫内生长受限，TTTS 为双胎输血综合征，-表示无数据 |
| 1 |
Lopriore E, Middeldorp JM, Oepkes D, et al.Twin anemiapolycythemia sequence in two monochorionic twin pairs without oligo-polyhydramnios sequence [J].Placenta, 2007, 28(1): 47-51.
|
| 2 |
Yoshimura Y, Ozawa K, Goto H, et al.Twin anemia-polycythemia sequence with spontaneous resolution in dichorionic diamniotic twin pregnancy a case report and a review of the literature [J].Cureus,2024, 16(11): e73563.
|
| 3 |
Zhao DP, de Villiers SF, Slaghekke F, et al.Prevalence, size, number and localization of vascular anastomoses in monochorionic placentas[J].Placenta, 2013, 34(7): 589-593.
|
| 4 |
Pena Burgos EM, Regojo Zapata RM, Turiel Miranda M, et al.Spontaneous twin anemia- polycythemia sequence from two donors to one recipient in a monochorionic triamniotic pregnancy: case report and review of the literature [J].J Obstet Gynaecol Res, 2021, 47(12):4450-4455.
|
| 5 |
Slaghekke F, Kist WJ, Oepkes D, et al.Twin anemia-polycythemia sequence: diagnostic criteria, classification, perinatal management and outcome [J].Fetal Diagn Ther, 2010, 27(4): 181-190.
|
| 6 |
Khalil A, Rodgers M, Baschat A, et al.ISUOG practice guidelines:role of ultrasound in twin pregnancy [J].Ultrasound Obst Gyn, 2016,47(2): 247-63.
|
| 7 |
魏晓光, 魏瑗, 龚丽君, 等.产前超声对双胎贫血-红细胞增多序列征的诊断价值研究 [J].中国超声医学杂志, 2021, 37(11): 1316-1319.
|
| 8 |
谭丽芳, 张晓航, 张雪梅.单绒毛膜双胎TTTS 与TAPS 胎盘的特点 [J].中国产前诊断杂志(电子版), 2018, 10(1): 6-10.
|
| 9 |
Khalil A, Gordijn S, Ganzevoort W, et al.Consensus diagnostic criteria and monitoring of twin anemia-polycythemia sequence: delphi procedure [J].Ultrasound Obst Gyn, 2020, 56(3): 388-394.
|
| 10 |
Bahtiyar MO, Ekmekci E, Demirel E, et al.In utero partial exchange transfusion combined with in utero blood transfusion for prenatal management of twin anemia-polycythemia sequence [J].Fetal Diagn Ther, 2019, 45(1): 28-35.
|
| 11 |
王新霞, 韩瑞征, 栗河舟, 等.双胎贫血-红细胞增多序列征的产前超声诊断及围产结局分析 [J].中国临床医学影像杂志, 2022,33(7): 506-510.
|
| 12 |
Baschat AA, Miller JL.Pathophysiology, diagnosis, and management of twin anemia polycythemia sequence in monochorionic multiple gestations [J].Best Pract Res Clin Obstet Gynaecol, 2022, 84: 115-126.
|
| 13 |
Bae JY, Oh JJ, Hong SY.Prenatal diagnosis of spontaneous twin anemia- polycythemia sequence and postnatal examina-tion of placental vascular anastomoses [J].Obstet Gynecol Sci, 2016, 59(6):539-543.
|
| 14 |
Tollenaar LSA, Slaghekke F, Middeldorp JM, et al.Twin anemia polycythemia sequence: current views on pathogenesis, diagnostic criteria, perinatal management, and outcome [J].Twin Res Hum Genet, 2016, 19(3): 222-233.
|
| 15 |
De Paepe ME, Gündog an F, Mao Q, et al.Redness discordance in monochorionic twin placentas: correlation with clinical and placental findings [J].Placenta, 2017, 60: 54-60.
|
| 16 |
Tollenaar LSA, Lopriore E, Middeldorp JM, et al.Prevalence of placental dichotomy, fetal cardiomegaly and starry-sky liver in twin anemia-polycythemia sequence [J].Ultrasound Obst Gyn, 2020, 56(3):395-399.
|
| 17 |
Tollenaar LS, Zhao DP, Middeldorp JM, et al.Color difference in placentas with twin anemia-polycythemia sequence: an additional diagnostic criterion? [J].Fetal Diagn Ther, 2016, 40(2): 123-127.
|
| 18 |
Verbeek L, Slaghekke F, Hulzebos CV, et al.Hypoalbuminemia in donors with twin anemia-polycythemia sequence：a matched casecontrol study [J].Fetal Diagn Ther, 2013, 3(4): 241-245.
|
| 19 |
Lewi L, Jani J, Blickstein I, et al.The outcome of monochorionic diamniotic twin gestations in the era of invasive fetal therapy: a prospective cohort study [J].Am J Obstet Gynaecol, 2008, 199(5):514.e1-514.e8.
|
| 20 |
杨泽宇, 廖姗姗, 刘彩霞, 等.双胎妊娠超声筛查与诊断技术规范(2021 年更新版) [J].中国实用妇科与产科杂志, 2021, 37(5): 550-553.
|
| 21 |
Khalil A, Rodgers M, Baschat A, et al.ISUOG practice guide- lines：role of ultrasound in twin pregnancy [J].Ultrasound Obstet Gynecol,2016, 47(2): 247-263.
|
| 22 |
Rychik J, Tian Z, Bebbington M, et al.The twin-twin transfu-sion syndrome: spectrum of cardiovascular abnormality and development of a cardiovascular score to assess severity of disease [J].Am J Obstet Gynecol, 2007, 197(4): 392.
|
| 23 |
Andrioli Peralta CF, Jorge Rodrigues da Costa K, Peneluppi Horak AC, et al.Predictors of fetal death, neonatal survival and neurological outcomes in severe twin-twin transfusion syndrome treated by laser ablation of placental vessels [J].Prenatal Diag, 2023, 44(3): 325-335.
|
| 24 |
饶腾子, 李玲, 魏然, 等.双胎贫血-红细胞增多序列综合征宫内治疗结局分析 [J].中国产前诊断杂志(电子版), 2020, 12(3): 29-33.
|
| 25 |
张志涛, 刘彩霞, 少尉, 等.双胎贫血-红细胞增多序列征诊治及保健指南(2020) [J].中国实用妇科与产科杂志, 2020, 36(9): 818-824.
|
| 26 |
Miller RS, Miller JL, Monson MA, et al.Society for Maternal-Fetal Medicine Consult Series #72: twin-twin transfusion syndrome and twin anemia-polycythemia sequence [J].Am J Obstet Gynaecol, 2023,231(4): B16-B37.
|
| 27 |
Giorgione V, D’antonio F, Manji A, et al.Perinatal outcome of pregnancy complicated by twin anemia- polycythemia sequence:Systematic review and meta-analysis [J].Ultrasound Obs Gynecol,2021, 58(6): 813-823.
|
| 28 |
Tollenaar LSA, Slaghekke F, Lewi L, et al.Treatment and outcome of 370 cases with spontaneous or post-laser twin anemia-polycythemia sequence managed in 17 fetal therapy centers [J].Ultrasound Obstet Gynecol, 2020, 56(3): 378-387.
|
| 29 |
Ding Y, Li J, Liu W, et al.Ultrasonographic features and pregnancy outcomes of complications in monochorionic twin pregnancy during various pregnancy periods [J].Altern Ther Health M, 2023, 30(6): 82-89.
|
/
| 〈 |
|
〉 |
