中华医学超声杂志(电子版) ›› 2025, Vol. 22 ›› Issue (06) : 504 -515. doi: 10.3877/cma.j.issn.1672-6448.2025.06.002

专家共识

颈动脉粥样硬化斑块超声规范化操作及报告专家共识(2025,上海)
上海市超声质量控制中心
  1. 1. 200032 上海,复旦大学附属中山医院超声诊断科
  • 收稿日期:2025-02-25 出版日期:2025-06-01

Expert consensus on standardized operation and reporting of carotid ultrasound (2025, Shanghai)

Shanghai Municipal Center for Ultrasound Quality Control

  • Received:2025-02-25 Published:2025-06-01
引用本文:

上海市超声质量控制中心. 颈动脉粥样硬化斑块超声规范化操作及报告专家共识(2025,上海)[J/OL]. 中华医学超声杂志(电子版), 2025, 22(06): 504-515.

Shanghai Municipal Center for Ultrasound Quality Control. Expert consensus on standardized operation and reporting of carotid ultrasound (2025, Shanghai)[J/OL]. Chinese Journal of Medical Ultrasound (Electronic Edition), 2025, 22(06): 504-515.

图1 颈动脉斑块超声扫查示意图。图a为斑块横断面超声扫查示意图;图b为斑块附着在血管侧壁,常规的超声纵断面扫查显示不明显;图c为转换探头角度进行横断面扫查,斑块显示清晰
图2 颈动脉斑块灰阶超声图像。图a为颈动脉斑块纵断面图像;图b为颈动脉斑块横断面图像;图c为多发斑块横断面图像(白色箭头为斑块)
图3 颈动脉斑块大小测量的超声图像及示意图。图a为颈动脉斑块纵断面长度测量灰阶超声图像;图b为纵断面测量颈动脉斑块长度示意图;图c为颈动脉斑块横断面厚度测量灰阶超声图像;图d为横断面测量颈动脉斑块厚度示意图
图4 颈动脉纵断面解剖示意图
图5 颈动脉斑块附着位置的灰阶超声图像及示意图。图a为颈动脉前壁斑块超声图像;图b为颈动脉后壁斑块的纵断面及横断面超声图像;图c为颈动脉侧壁斑块超声图像;图d~g分别为颈动脉斑块前壁、后壁及侧壁横断面示意图(图a~c红色圈出部分为斑块;图d~g黄色部分为斑块,红色部分为血管壁及斑块与血管腔交界面)
图6 不同回声类型颈动脉斑块的灰阶超声图像。图a示均匀回声斑块;图b示不均匀回声斑块(斑块内部回声不一致超过20%);图c示低回声斑块;图d示极低回声斑块;图e示高回声斑块;图f示强回声斑块后方伴声影(图中白色箭头所示为斑块,图b中箭头A所示为低回声区,箭头B所示为极低回声区,箭头C所示为高回声区)
图7 颈动脉斑块表面特征的灰阶超声图像及示意图。图a为超声图像示斑块表面连续光滑,回声连续;图b为超声纵断面图像示斑块表面不连续(白色箭头所示为斑块表面回声中断不连续,可见缺损);图c为超声横断面图像示斑块表面不连续(白色箭头所示为斑块表面回声中断不连续,可见缺损);图d~f分别为图a~c超声图像对应的示意图
图8 颈动脉狭窄程度超声评估方法。图a为北美症状性颈动脉内膜切除实验(NASCET)测量法(A为狭窄处管腔内径;B为狭窄处远端正常段管腔内径,狭窄率=(B-A)/B×100%);图b为欧洲颈动脉外科试验(ECST)测量法(A为狭窄处管腔内径;C为狭窄处正常内径,狭窄率=(C-A)/C×100%);图c为面积测量法(较大红圈内为原始管腔面积,较小红圈内为残余管腔面积);图d为超声图像示斑块致管腔轻度狭窄(狭窄率<50%);图e为超声图像示斑块致管腔中度狭窄(狭窄率50%~69%);图f为超声图像示斑块致管腔重度狭窄(狭窄率≥70%)

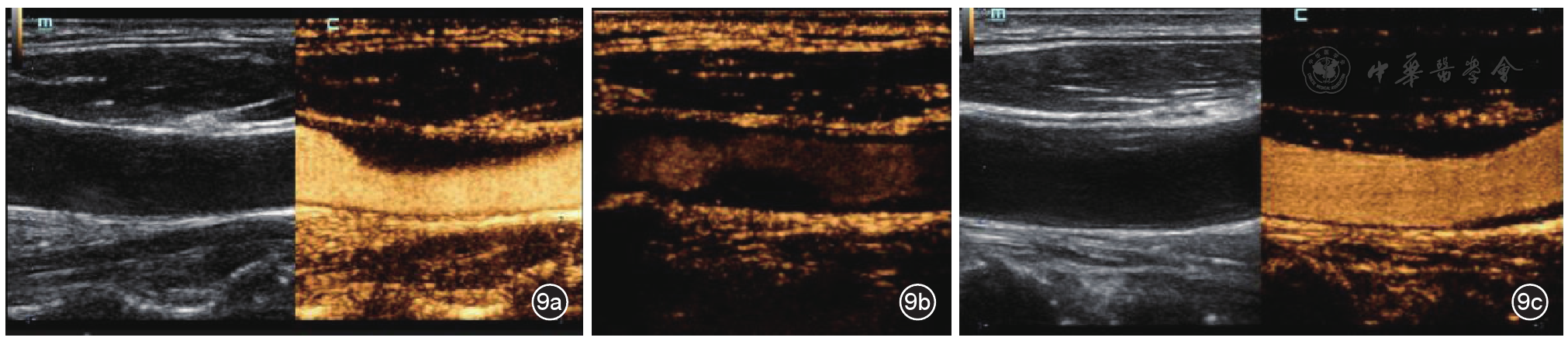

图9 斑块内新生血管的超声造影增强程度超声图像。图a示无新生血管:斑块内无明显微泡显影;图b为少量新生血管:斑块内少量微泡显影,微泡分布于斑块基底部;图c为新生血管丰富:斑块内见大量微泡显影,微泡分布于斑块表面及基底部
图10 正常颈动脉超声标准存图(单侧留存6张图像,双侧共须留存12张图像)。图a为颈总动脉近段至中段纵断面图;图b为颈总动脉远段至分叉处、颈内动脉起始段纵断面图;图c为放大测量内中膜厚度图;图d为颈总动脉彩色多普勒血流图;图e为颈内动脉彩色多普勒血流图;图f为颈外动脉彩色多普勒血流图
图11 动脉粥样硬化斑块超声标准存图。图a为最大斑块长度纵断面及最大斑块厚度横断面;图b为最大斑块管腔最窄处彩色血流图;图c为最大斑块管腔最窄处血流频谱图
表1 颈动脉超声检查的质量控制内容
质控项目 质控内容
检查前准备情况及仪器调节 考察操作者对仪器调节的熟练程度,对基本概念的了解程度:
1.灰阶图像调节:选择探头、频率、检查条件,调节图像深度、增益、时间增益补偿、聚焦点及动态范围等
2.彩色多普勒调节:频率、增益(彩色充盈程度调节)、彩色多普勒速度标尺、取样框大小及偏转、彩色滤波
3.脉冲多普勒调节:取样线位置及门宽、角度校正,标尺范围及基线位置
4.超声造影模式调节:在低机械指数条件下使用低声压,机械指数一般低于0.3
扫查流程 检查操作者扫查流程是否熟练及是否符合检查要求:
1.检查须包括纵断面及横断面,须显示颈总、颈内、颈外动脉并正确区分
2.血管内径应在灰阶图上测量,内中膜厚度的测量方法(部位及放大)
3.流速曲线相关参数(如血流速度、阻力指数等)测量方法;至少须测量颈总动脉流速、颈总动脉及颈内动脉的阻力指数
图像采集标准化 检查必存图像是否完整,在存图时必须标注左右或有体表标记
1.正常颈动脉必存图像(左右各6幅存图,共12幅存图):
①颈总动脉近段至中段纵断面图
②颈总动脉远段至分叉处、颈内动脉起始处纵断面
③放大测量内中膜厚度图
④颈总动脉彩色多普勒血流图
⑤颈内动脉彩色多普勒血流图
⑥颈外动脉彩色多普勒血流图
2.动脉粥样硬化斑块形成必存图像(共4幅):
①最大斑块纵断面,测量获得斑块长度
②最大斑块横断面
③最大斑块管腔最窄处彩色血流图
④最大斑块管腔最窄处血流频谱图
结构化报告 检查结构化报告是否完整
图12 颈动脉斑块影像报告和数据系统分类示意图注:CP-RADS为颈动脉斑块影像报告和数据系统;MWT为最大管壁厚度;LRNC为富含脂质的坏死核;IPH为斑块内出血
表2 颈动脉斑块影像报告和数据系统
1
Mensah GA, Fuster V, Murray CJL, et al. Global burden of cardiovascular diseases and risks, 1990-2022 [J]. J Am Coll Cardiol, 2023, 82(25): 2350-2473.
2
张兆毓, 杨时佳, 李小攀, 等. 1990年至2019年我国心血管疾病负担变化及趋势分析 [J]. 心脑血管病防治, 2024, 24(2): 5-9, 65.
3
陈伟伟, 隋辉, 马丽媛. 中国心脑血管病流行现况及防治进展 [J]. 心脑血管病防治, 2016, 16(2): 79-83.
4
Ye Q, Zou B, Yeo YH, et al. Global prevalence, incidence, and outcomes of non-obese or lean non-alcoholic fatty liver disease: a systematic review and meta-analysis [J]. Lancet Gastroenterol Hepatol, 2020, 5(8): 739-752.
5
Tang X, Wu M, Wu S, et al. Continuous metabolic syndrome severity score and the risk of CVD and all-cause mortality [J]. Eur J Clin Invest, 2022, 52(9): e13817.
6
Falk E. Pathogenesis of atherosclerosis [J]. J Am Coll Cardiol, 2006, 47(8 Suppl): C7- C12.
7
Postley JE, Perez A, Wong ND, et al. Prevalence and distribution of sub-clinical atherosclerosis by screening vascular ultrasound in low and intermediate risk adults: the New York physicians study [J]. J Am Soc Echocardiogr, 2009, 22(10): 1145-1151.
8
Stein JH, Korcarz CE, Hurst RT, et al. Use of carotid ultrasound to identify subclinical vascular disease and evaluate cardiovascular disease risk: a consensus statement from the American Society of Echocardiography Carotid Intima-Media Thickness Task Force. Endorsed by the Society for Vascular Medicine [J]. J Am Soc Echocardiogr, 2008, 21(2): 93-111; quiz 189-190.
9
del Sol AI, Moons KG, Hollander M, et al. Is carotid intima-media thickness useful in cardiovascular disease risk assessment? The Rotterdam Study [J]. Stroke, 2001, 32(7): 1532-1538.
10
Johri AM, Nambi V, Naqvi TZ, et al. Recommendations for the assessment of carotid arterial plaque by ultrasound for the characterization of atherosclerosis and evaluation of cardiovascular risk: From the American Society of Echocardiography [J]. J Am Soc Echocardiogr, 2020, 33(8): 917-933.
11
中国心血管病风险评估和管理指南编写联合委员会. 中国心血管病风险评估和管理指南 [J]. 中国循环杂志, 2019, 34(1): 4-28.
12
Saba L, Antignani PL, Gupta A, et al. International Union of Angiology (IUA) consensus paper on imaging strategies in atherosclerotic carotid artery imaging: From basic strategies to advanced approaches [J]. Atherosclerosis, 2022, 354: 23-40.
13
Aktaa S, Gencer B, Arbelo E, et al. European Society of Cardiology Quality Indicators for Cardiovascular Disease Prevention: developed by the Working Group for Cardiovascular Disease Prevention Quality Indicators in collaboration with the European Association for Preventive Cardiology of the European Society of Cardiology [J]. Eur J Prev Cardiol, 2022, 29(7): 1060-1071.
14
Poredoš P, Cífková R, Marie Maier JA, et al. Preclinical atherosclerosis and cardiovascular events: Do we have a consensus about the role of preclinical atherosclerosis in the prediction of cardiovascular events? [J]. Atherosclerosis, 2022, 348: 25-35.
15
Roman MJ, Naqvi TZ, Gardin JM, et al. American society of echocardiography report. Clinical application of noninvasive vascular ultrasound in cardiovascular risk stratification: a report from the American Society of Echocardiography and the Society for Vascular Medicine and Biology [J]. Vasc Med, 2006, 11(3): 201-211.
16
Sidhu PS, Cantisani V, Dietrich CF, et al. The EFSUMB guidelines and recommendations for the clinical practice of contrast-enhanced ultrasound (CEUS) in non-hepatic applications: Update 2017 (Long Version) [J]. Ultraschall Med, 2018, 39(2): e2-e44.
17
华扬, 惠品晶, 邢瑛琦. 中国脑卒中血管超声检查指导规范 [J/CD]. 中华医学超声杂志(电子版), 2015, 12(8): 599-610.
18
Xue W, Tian Y, Jing L, et al. Sex-specific prediction value of common carotid artery diameter for stroke risk in a hypertensive population: a cross-sectional study [J]. Quant Imaging Med Surg, 2022, 12(2): 1428-1437.
19
Xue W, Tian Y, Jing L, et al. Sex difference in the correlation between carotid artery diameter and prevalence of stroke: Insights from a Chinese population [J]. Int J Cardiol, 2022, 353: 103-108.
20
Yin Z, Guo J, Li R, et al. Common carotid artery diameter and the risk of cardiovascular disease mortality: a prospective cohort study in Northeast China [J]. BMC Public Health, 2024, 24(1): 251.
21
van Dijk RA, Nijpels G, Twisk JW, et al. Change in common carotid artery diameter, distensibility and compliance in subjects with a recent history of impaired glucose tolerance: a 3-year follow-up study [J]. J Hypertens, 2000, 18(3): 293-300.
22
Eigenbrodt ML, Evans GW, Rose KM, et al. Bilateral common carotid artery ultrasound for prediction of incident strokes using intima-media thickness and external diameter: an observational study [J]. Cardiovasc Ultrasound, 2013, 11: 22.
23
Eigenbrodt ML, Bursac Z, Rose KM, et al. Common carotid arterial interadventitial distance (diameter) as an indicator of the damaging effects of age and atherosclerosis, a cross-sectional study of the Atherosclerosis Risk in Community Cohort Limited Access Data (ARICLAD), 1987-89 [J]. Cardiovasc Ultrasound, 2006, 4: 1.
24
Polak JF, Kronmal RA, Tell GS, et al. Compensatory increase in common carotid artery diameter. Relation to blood pressure and artery intima-media thickness in older adults. Cardiovascular Health Study [J]. Stroke, 1996, 27(11): 2012-2015.
25
Polak JF, Sacco RL, Post WS, et al. Incident stroke is associated with common carotid artery diameter and not common carotid artery intima-media thickness [J]. Stroke, 2014, 45(5): 1442-1446.
26
Touboul PJ, Hennerici MG, Meairs S, et al. Mannheim carotid intima-media thickness and plaque consensus (2004-2006-2011). An update on behalf of the advisory board of the 3rd, 4th and 5th watching the risk symposia, at the 13th, 15th and 20th European Stroke Conferences, Mannheim, Germany, 2004, Brussels, Belgium, 2006, and Hamburg, Germany, 2011 [J]. Cerebrovasc Dis, 2012, 34(4): 290-296.
27
AbuRahma AF, Avgerinos ED, Chang RW, et al. Society for vascular surgery clinical practice guidelines for management of extracranial cerebrovascular disease [J]. J Vasc Surg, 2022, 75(1s): 4s-22s.
28
Piepoli MF, Hoes AW, Agewall S, et al. 2016 European Guidelines on cardiovascular disease prevention in clinical practice: The Sixth Joint Task Force of the European Society of Cardiology and Other Societies on Cardiovascular Disease Prevention in Clinical Practice (constituted by representatives of 10 societies and by invited experts) Developed with the special contribution of the European Association for Cardiovascular Prevention & Rehabilitation (EACPR) [J]. Atherosclerosis, 2016, 252: 207-274.
29
Arnold JA, Modaresi KB, Thomas N, et al. Carotid plaque characterization by duplex scanning: observer error may undermine current clinical trials [J]. Stroke, 1999, 30(1): 61-65.
30
华扬. 脑卒中血管超声 [M]. 北京: 人民卫生出版社, 2021.
31
王陇德. 中国脑卒中防治指导规范(合订本) [M]. 北京: 人民卫生出版社, 2018.
32
中国医师协会超声医师分会. 超声评价颈动脉易损斑块中国专家共识(2023版) [J]. 中华超声影像学杂志, 2023, 32(8): 645-655.
33
国家卫生健康委员会脑卒中防治专家委员会血管超声专业委员会,中国超声医学工程学会浅表器官及外周血管超声专业委员会,中国超声医学工程学会颅脑及颈部血管超声专业委员会. 头颈部血管超声若干问题的专家共识(颈动脉部分) [J]. 中国脑血管病杂志, 2020, 17(6): 346-353.
34
Dósa E, Hirschberg K, Apor A, et al. Echolucent or predominantly echolucent femoral plaques predict early restenosis after eversion carotid endarterectomy [J]. J Vasc Surg, 2010, 51(2): 345-350.
35
Li Q, Liu B, Zhao Y, et al. Echolucent carotid plaque is associated with restenosis after carotid endarterectomy [J]. J Neurosurg, 2021, 134(3): 1203-1209.
36
Insull W Jr. The pathology of atherosclerosis: plaque development and plaque responses to medical treatment [J]. Am J Med, 2009, 122(1 Suppl): S3-S14.
37
Ferguson GG, Eliasziw M, Barr HW, et al. The North American symptomatic carotid endarterectomy trial : surgical results in 1415 patients [J]. Stroke, 1999, 30(9): 1751-1758.
38
Randomised trial of endarterectomy for recently symptomatic carotid stenosis: final results of the MRC European Carotid Surgery Trial (ECST) [J]. Lancet, 1998, 351(9113): 1379-1387.
39
Grant EG, Benson CB, Moneta GL, et al. Carotid artery stenosis: gray-scale and Doppler US diagnosis--Society of Radiologists in Ultrasound Consensus Conference [J]. Radiology, 2003, 229(2): 340-346.
40
Spagnoli LG, Mauriello A, Sangiorgi G, et al. Extracranial thrombotically active carotid plaque as a risk factor for ischemic stroke [J]. JAMA, 2004, 292(15): 1845-1852.
41
叶明, 华扬, 凌晨, 等. 颈动脉病变血管造影不同方法测量与超声检测一致性的比较[C].长沙: 第八届全国超声医学学术会议, 2004.
42
陈忠, 杨耀国. 颈动脉狭窄诊治指南 [J/CD]. 中国血管外科杂志(电子版), 2017, 9(3): 169-175.
43
Wang Y, Wang T, Luo Y, et al. Identification markers of carotid vulnerable plaques: an update [J]. Biomolecules, 2022, 12(9): 1192.
44
Johri AM, Herr JE, Li TY, et al. Novel ultrasound methods to investigate carotid artery plaque vulnerability [J]. J Am Soc Echocardiogr, 2017, 30(2): 139-148.
45
Brinjikji W, Huston J 3rd, Rabinstein AA, et al. Contemporary carotid imaging: from degree of stenosis to plaque vulnerability [J]. J Neurosurg, 2016, 124(1): 27-42.
46
Saba L, Saam T, Jäger HR, et al. Imaging biomarkers of vulnerable carotid plaques for stroke risk prediction and their potential clinical implications [J]. Lancet Neurol, 2019, 18(6): 559-572.
47
Muller JE, Abela GS, Nesto RW, et al. Triggers, acute risk factors and vulnerable plaques: the lexicon of a new frontier [J]. J Am Coll Cardiol, 1994, 23(3): 809-813.
48
Naghavi M, Libby P, Falk E, et al. From vulnerable plaque to vulnerable patient: a call for new definitions and risk assessment strategies: Part II [J]. Circulation, 2003, 108(15): 1772-1778.
49
Schaar JA, Muller JE, Falk E, et al. Terminology for high-risk and vulnerable coronary artery plaques. Report of a meeting on the vulnerable plaque, June 17 and 18, 2003, Santorini, Greece [J]. Eur Heart J, 2004, 25(12): 1077-1082.
50
Sidhu PS, Cantisani V, Dietrich CF, et al. The EFSUMB guidelines and recommendations for the clinical practice of contrast-enhanced ultrasound (CEUS) in non-hepatic applications: Update 2017 (Short Version) [J]. Ultraschall Med, 2018, 39(2): 154-180.
51
Forsberg F, Machado P, Stanczak M, et al. Assessing carotid plaque neovascularity and calcifications in patients prior to endarterectomy [J]. J Vasc Surg, 2019, 70(4): 1137-1144.
52
Yang F, Wang C. Consistency of superb microvascular imaging and contrast-enhanced ultrasonography in detection of intraplaque neovascularization: A meta-analysis [J]. PLoS One, 2020, 15(7): e0230937.
53
Wang Q, Huang Y, Zhang Y, et al. Carotid artery vulnerable plaque model for cerebrovascular events by conventional ultrasound & contrast-enhanced ultrasound: A preliminary study [J]. Clin Hemorheol Microcirc, 2022, 80(2): 197-209.
54
Huang Y, Liu Q, Xu J, et al. Contrast-enhanced ultrasound perfusion patterns and serum lipid signatures of vulnerable carotid artery plaque in predicting stroke: A cohort study of carotid stenosis in Chinese patients [J]. Clin Hemorheol Microcirc, 2020, 75(3): 349-359.
55
Camps-Renom P, Prats-Sánchez L, Casoni F, et al. Plaque neovascularization detected with contrast-enhanced ultrasound predicts ischaemic stroke recurrence in patients with carotid atherosclerosis [J]. Eur J Neurol, 2020, 27(5): 809-816.
56
Saba L, Cau R, Murgia A, et al. Carotid Plaque-RADS: A novel stroke risk classification system [J]. JACC Cardiovasc Imaging, 2024, 17(1): 62-75.
