Echocardioimagedata characteristics of fetal isolated total anomalous pulmonary venous connection and application of high definition flow imaging and spatio-temporal image correlation

doi:10.3877/cma.j.issn.1672-6448.2023.10.010

Abstract

Abstract:

Objective

To analyze the two-dimensional gray scale and color Doppler echocardiography characteristics of fetal isolated complete pulmonary venous drainage (TAPVC) , and to explore the application of four-dimensional time-space correlation imaging (STIC) and high definition flow imaging (HD-flow) in the prenatal diagnosis of isolated TAPVC.

Methods

A retrospective analysis was performed on 16 cases of fetal isolated TAPVC at Guangxi in Maternity & Child Healthcare Hospital. Nine cases were diagnosed by two-dimensional gray scale and color Doppler echocardiography from January 2016 to January 2018, and seven cases were diagnosed based on two-dimensional echocardiography and four-dimensional STIC and HD-flow from February 2018 to March 2021. All of the above cases were both diagnosed by direct and indirect ultrasonography signs, and all cases were followed up.

Results

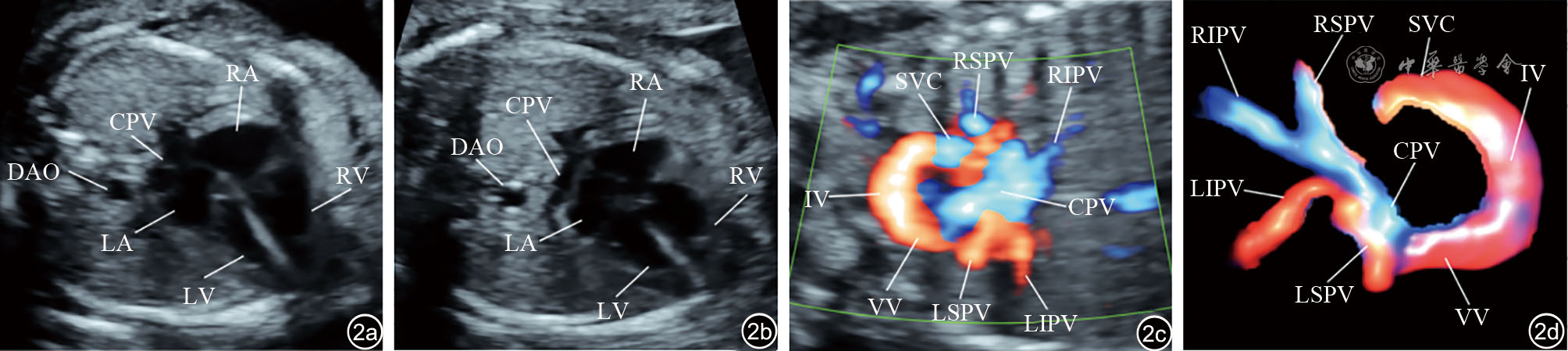

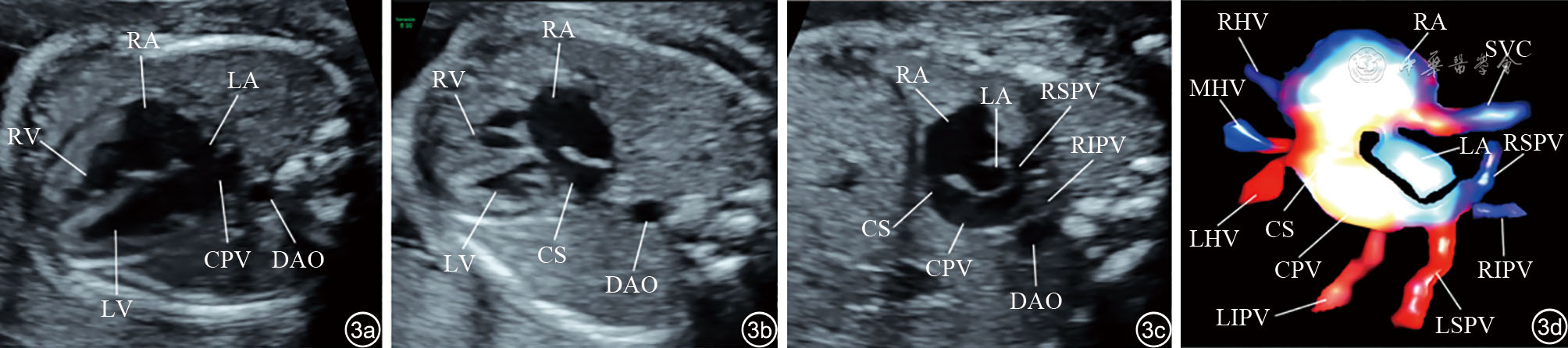

The study included supracardiac type TAPVC in 12 (12/16) cases, cardiac type in 2 (2/16), and infracardiac type in 2 (2/16). Eight cases were found with direct ultrasound signs. Eight cases were found with indirect signs, including coronary sinus dilation in 2 cases, vertical vein or superior vena cava widening in 5, and abnormal blood vessels in the hilar area of the liver in 1.The four-dimensional STIC/HD-flow reconstruction images of 7 cases all showed that the 4 pulmonary veins were connected to the common pulmonary vein and joined into the systemic vein through vertical veins or the coronary sinus (right atrium).

Conclusions

The combination of direct and indirect signs of prenatal two-dimensional gray scale and color Doppler echocardiography is more helpful for the diagnosis of isolated fetal TAPVC, and four-dimensional STIC/HD-flow can provide more valuable information.

Key words: Total anomalous pulmonary venous connection, Echocardiography, Fetus, Prenatal diagnosis, Spatio-temporal image correlation, High definition flow imaging

Shuihua Yang, Guidan He, Guican Qin, Mengfeng Liang, Yanhe Luo, Xueqin Li, Juansong Tang. Echocardioimagedata characteristics of fetal isolated total anomalous pulmonary venous connection and application of high definition flow imaging and spatio-temporal image correlation[J]. Chinese Journal of Medical Ultrasound (Electronic Edition), 2023, 20(10): 1061-1067.

/ / Recommend

Add to citation manager EndNote|Ris|BibTeX

URL: https://chaosheng.cma-cmc.com.cn/EN/10.3877/cma.j.issn.1672-6448.2023.10.010

https://chaosheng.cma-cmc.com.cn/EN/Y2023/V20/I10/1061

Figures/Tables 5

References 26

1	Reller MD, Strickland MJ, Riehle-Colarusso T, et al. Prevalence of congenital heart defects in metropolitan Atlanta, 1998–2005[J]. J Pediatr, 2008, 153(6): 807-813.
2	Laux D, Fermont L, Bajolle F, et al. Prenatal diagnosis of isolated total anomalous pulmonary venous connection: a series of 10 cases[J]. Ultrasound Obstet Gynecol, 2013, 41(3): 291-297.
3	Paladini D, Pistorio A, Wu LH, et al. Prenatal diagnosis of total and partial anomalous pulmonary venous connection: multicenter cohort study and meta-analysis[J]. Ultrasound Obstet Gynecol, 2018, 52(1): 24-34.
4	李博, 孔德璇, 彭芳华, 等.超声在胎儿肺静脉异位引流诊断中的应用价值[J/OL].中华医学超声杂志(电子版), 2023, 20(4): 437-441.
5	张晓花, 王锟, 张平, 等. 区域血流追踪法在超声诊断胎儿肺静脉异位引流中的应用价值[J/OL]. 中华医学超声杂志(电子版), 2021, 18(11): 1073-1077.
6	Zhao L, Wu Y, Chen S, et al. Feasibility study on prenatal cardiac screening using four-dimensional ultrasound with spatiotemporal image correlation: a multicenter study[J]. PLoS One, 2016, 11(6): e0157477.
7	Sun X, Zhang Y, Fan M, et al. Role of four-dimensional echocardiography with high-definition flow imaging and spatiotemporal image correlation in detecting fetal pulmonary veins[J]. Echocardiography, 2017, 34(6): 906-914.
8	许进, 何怡华, 李治安, 等. 时间-空间关联成像联合高分辨率血流显像在产前胎儿静脉系统异常诊断中的应用价值[J]. 中华超声影像学杂志, 2013, 22(4): 300-304.
9	Tongsong T, Luewan S, Jatavan P, et al. A simple rule for prenatal diagnosis of total anomalous pulmonary venous return[J]. J Ultrasound Med, 2016, 35(7): 1601-1607.
10	International Society of Ultrasound in Obstetrics and Gyne-cology, Carvalho JS, Allan LD, et al. ISUOG practice guidelines (updated): sonoimagedata screening examination of the fetal heart[J]. Ultrasound Obstet Gynecol, 2013, 41(3): 348-359.
11	Morales DL, Braud BE, Booth JH, et al. Heterotaxy patients with total anomalous pulmonary venous return: improving surgical results[J]. Ann Thorac Surg, 2006, 82(5): 1621-1627, discussion 1627-1628.
12	Suguna G, Michael MB, Norman HS, et al. Prenatal findings in total anomalous pulmonary venous return: a diagnostic road map starts with obstetric screening views[J]. J Ultrasound Med, 2014, 33(7): 1193-1207.
13	Herlong JR, Jaggers JJ, Ungerleider RM. Congenital heart surgery nomenclature and database project: pulmonary venous anomalies[J]. Review Ann Thorac Surg, 2000, 69(4 Suppl): S56-S69.
14	American Institute of Ultrasound in Medicine. AIUM practice guideline for the performance of fetal echocardiography[J]. J Ultrasound Med, 2013, 32(6): 1067-1082.
15	Lee MY, Won HS, Shim JY, et al. Prenatal diagnosis of atrial isomerism in the Korean population[J]. Obstet Gynecol Sci, 2014, 57(3): 193-200.
16	Kao CC, Hsieh CC, Cheng PJ, et al. Total anomalous pulmonary venous connection: from embryology to a prenatal ultrasound diagnostic update[J]. J Med Ultrasound, 2017, 25(3): 130-137.
17	吴娟, 刘云, 王铭, 等. 胎儿完全型肺静脉异位引流产前超声诊断要点[J]. 中华围产医学杂志, 2019, 22(5): 296-302.
18	韩建成, 李田静, 王静怡, 等. 正常胎儿左心房后间隙指数及其对胎儿单纯完全性肺静脉异位引流的诊断价值[J]. 中华超声影像学杂志, 2020, 29(9): 743-748.
19	Files MD, Morray B. Total anomalous pulmonary venous connection: preoperative anatomy, physiology, imaging, and interventional management of postoperative pulmonary venous obstruction[J]. Semin Cardiothorac Vasc Anesth, 2017, 21(2): 123-131.
20	Brown VE, De Lange M, Dyar DA, et al. Echocardioimagedata spectrum of supracardiac total anomalous pulmonary venous connection[J]. J Am Soc Echocardiogr, 1998, 11(3): 289-293.
21	Kawazu Y, Inamura N, Shiono N, et al. ‘Post-LA space index' as a potential novel marker for the prenatal diagnosis of isolated total anomalous pulmonary venous connection[J]. Ultrasound Obstet Gynecol, 2014, 44(6): 682-687.
22	Volpe P, Tuo G, De Robertis V, et al. Fetal interrupted aortic arch: 2D-4D echocardiography, associations and outcome[J]. Ultrasound Obstet Gynecol, 2010, 35(3): 302-309.
23	Zhang D, Zhang Y, Ren W, et al. Prenatal diagnosis of fetal interrupted aortic arch type A by two-dimensional echocardiography and four-dimensional echocardiography with B-Flow imaging and spatiotemporal image correlation[J]. Echocardiography, 2016, 33(1): 90-98.
24	Volpe P, Campobasso G, Robertis V De, et al. Two-and four-dimensional echocardiography with B-flow imaging and spatiotemporal image correlation in prenatal diagnosis of isolated total anomalous pulmonary venous connection[J]. Ultrasound Obstet Gynecol, 2007, 30(6): 830-837.
25	Rabih C, Alfred A, Juliana M, et al. Recent development in three and four dimension fetal echocardiography[J]. Fetal Diagn Ther, 2020, 47(5): 345-353.
26	Eun YC, Chang HL, Su JP, et al. Assessing the recently noted surgical outcome of isolated total anomalous pulmonary venous connection repair: A single-secondary center experience[J]. J Card Surg, 2019, 34(12): 1526-1532.

病例	年龄（岁）	孕龄（周）	类型	首要超声切面^a	首要超声线索^b	四维重建	垂直静脉梗阻	随访结局
1	25	30	心上型	四腔心切面	肺静脉未与左心房相连	否	否	术后存活
2	27	23	心上型	三血管气管切面	上腔静脉增宽、出现垂直静脉	否	否	终止妊娠
3	24	23	心上型	四腔心切面	肺静脉未与左心房相连	否	否	术后死亡
4	28	21	心内型	冠状静脉窦切面	冠状静脉窦扩张	否	否	终止妊娠
5	33	22	心上型	三血管气管切面	上腔静脉增宽、出现垂直静脉	否	是	新生儿期死亡
6	31	29	心上型	四腔心切面	肺静脉未与左心房相连	否	否	术后存活
7	35	24	心上型	四腔心切面	肺静脉未与左心房相连	否	否	终止妊娠
8	35	26	心下型	四腔心切面	肺静脉未与左心房相连	否	是	失访
9	32	23	心上型	四腔心切面	肺静脉未与左心房相连	否	否	终止妊娠
10	28	24	心上型	三血管气管切面	上腔静脉增宽、出现垂直静脉	是	否	术后存活
11	33	28	心下型	腹部横切面	肝门脉区域异常血流	是	是	病理确诊
12	34	28	心上型	四腔心切面	肺静脉未与左心房相连	是	否	术后存活
13	31	24	心上型	三血管气管切面	上腔静脉增宽、出现垂直静脉	是	否	终止妊娠
14	30	24	心内型	冠状静脉窦切面	冠状静脉窦扩张	是	否	术后存活
15	28	23	心上型	三血管气管切面	上腔静脉增宽、出现垂直静脉	是	否	新生儿期死亡
16	29	25	心上型	四腔心切面	肺静脉未与左心房相连	是	是	术后死亡

病例	年龄（岁）	孕龄（周）	类型	首要超声切面^a	首要超声线索^b	四维重建	垂直静脉梗阻	随访结局
1	25	30	心上型	四腔心切面	肺静脉未与左心房相连	否	否	术后存活
2	27	23	心上型	三血管气管切面	上腔静脉增宽、出现垂直静脉	否	否	终止妊娠
3	24	23	心上型	四腔心切面	肺静脉未与左心房相连	否	否	术后死亡
4	28	21	心内型	冠状静脉窦切面	冠状静脉窦扩张	否	否	终止妊娠
5	33	22	心上型	三血管气管切面	上腔静脉增宽、出现垂直静脉	否	是	新生儿期死亡
6	31	29	心上型	四腔心切面	肺静脉未与左心房相连	否	否	术后存活
7	35	24	心上型	四腔心切面	肺静脉未与左心房相连	否	否	终止妊娠
8	35	26	心下型	四腔心切面	肺静脉未与左心房相连	否	是	失访
9	32	23	心上型	四腔心切面	肺静脉未与左心房相连	否	否	终止妊娠
10	28	24	心上型	三血管气管切面	上腔静脉增宽、出现垂直静脉	是	否	术后存活
11	33	28	心下型	腹部横切面	肝门脉区域异常血流	是	是	病理确诊
12	34	28	心上型	四腔心切面	肺静脉未与左心房相连	是	否	术后存活
13	31	24	心上型	三血管气管切面	上腔静脉增宽、出现垂直静脉	是	否	终止妊娠
14	30	24	心内型	冠状静脉窦切面	冠状静脉窦扩张	是	否	术后存活
15	28	23	心上型	三血管气管切面	上腔静脉增宽、出现垂直静脉	是	否	新生儿期死亡
16	29	25	心上型	四腔心切面	肺静脉未与左心房相连	是	是	术后死亡
