中华医学超声杂志(电子版) ›› 2026, Vol. 23 ›› Issue (06) : 442 -448. doi: 10.3877/cma.j.issn.1672-6448.2026.06.002

浅表器官超声影像学

县域医院场景下自动乳腺超声远程阅片模式与手持超声对乳腺癌诊断效能的评估
常艺1, 林欢2, 杨景桂3, 高毅4, 顾翔4, 党晓智1, 巨艳1, 刘丽文1, 宋宏萍1,†()
  1. 1 710032 西安,空军军医大学西京医院超声医学科
    2 510520 广州,广州医科大学附属中医医院乳腺科
    3 517300 广东龙川,广东省龙川县妇幼保健院超声科
    4 518060 深圳,深圳大学医学部生物医学工程学院
  • 收稿日期:2025-09-23 出版日期:2026-06-01
  • 通信作者: 宋宏萍
  • 基金资助:
    国家自然科学基金面上项目(82471991,82071934); 空军军医大学西京医院助推项目创新医学研究专项(XJZT25CX03)

Diagnostic performance of Automated Breast Ultrasound remote-reading mode compared with handheld ultrasound for breast cancer in county-wide hospital settings

Yi Chang1, Huan Lin2, Jinggui Yang3, Yi Gao4, Xiang Gu4, Xiaozhi Dang1, Yan Ju1, Liwen Liu1, Hongping Song1,†()

  1. 1 Department of Ultrasound, Xijing Hospital, the Fourth Military Medical University, Xi'an 710032, China
    2 Department of Breast Diseases, The Affiliated TCM Hospital of Guangzhou Medical University, Guangzhou 510520, China
    3 Department of Ultrasound, Maternal and Child Health Hospital, Longchuan 517300, China
    4 School of Biomedical Engineering, Health Science Center, Shenzhen University, Shenzhen 518060, China
  • Received:2025-09-23 Published:2026-06-01
  • Corresponding author: Hongping Song
引用本文:

常艺, 林欢, 杨景桂, 高毅, 顾翔, 党晓智, 巨艳, 刘丽文, 宋宏萍. 县域医院场景下自动乳腺超声远程阅片模式与手持超声对乳腺癌诊断效能的评估[J/OL]. 中华医学超声杂志(电子版), 2026, 23(06): 442-448.

Yi Chang, Huan Lin, Jinggui Yang, Yi Gao, Xiang Gu, Xiaozhi Dang, Yan Ju, Liwen Liu, Hongping Song. Diagnostic performance of Automated Breast Ultrasound remote-reading mode compared with handheld ultrasound for breast cancer in county-wide hospital settings[J/OL]. Chinese Journal of Medical Ultrasound (Electronic Edition), 2026, 23(06): 442-448.

目的

基于县域医院场景对比自动乳腺超声(ABUS)远程阅片模式和手持超声(HHUS)乳腺癌的诊断效能,评估ABUS远程阅片模式在乳腺癌筛查中的临床性能。

方法

回顾性纳入2021年4~10月于广东省龙川县妇幼保健医院进行乳腺检查的女性患者454例,所有患者均完成HHUS和ABUS检查,并分别给出美国放射学会乳腺成像报告和数据系统(BI-RADS)分类,HHUS的扫查与阅片由4名5年以上乳腺超声工作经验的超声医师完成,并记录消耗时间;ABUS图像采集由1名至少1年工作经验的技师完成全乳标准化超声图像采集,通过专用软件传输至远程阅片中心,由2名5年以上乳腺专科超声医师独立阅片,同时记录消耗时间。所有超声检查图像由阅片人员进行独立盲法判读。根据组织病理学及两年随访结果确定恶性、良性及正常病例,应用McNemar检验对比分析两种检查结果的敏感度、特异度、阳性预测值、阴性预测值,应用Delong检验比较受试者工作特征曲线(ROC)曲线下面积(AUC),应用配对样本t检验分析总耗时、超声医师耗时,使用χ2检验比较BI-RADS 1~2类、BI-RADS 3类和BI-RADS 4~5类占比。以P<0.05为差异有统计学意义。

结果

研究共纳入女性454例,年龄范围20~67岁,平均年龄(41.49±7.08)岁,其中恶性病例9例,良性或正常病例445例;ABUS检出恶性病例9例,HHUS检出恶性病例6例,两种检查方法在特异度、阳性预测值和AUC组间差异有统计学意义(96.9%、90.8%,P<0.01;39.1%、12.8%,P<0.01;0.99、0.85,P=0.028)。ABUS和HHUS两种检查方法的平均总耗时为(836±78)s、(311±77)s;超声医师平均耗时为(236±31)s、(311±77)s,组间差异有统计学意义(P均<0.05)。BI-RADS1~2类在ABUS和HHUS两种检查方式中的占比分别为68.7%(312/454)、54.2%(246/454);BI-RADS3类占比分别为26.2%(119/454)、35.5%(161/454);BI-RADS4~5类占比分别为5.1%(23/454)、10.4%(47/454);组间差异均有统计学意义(P<0.05)。

结论

在县域医院场景下,ABUS远程阅片模式诊断乳腺癌较HHUS具有更高的诊断效能,且ABUS检查超声医师诊断耗时短于HHUS检查。

Objective

To compare the diagnostic efficacy of the remote-reading mode of Automated Breast Ultrasound (ABUS) and Handheld Ultrasound (HHUS) for breast cancer in county-wide hospitals, and to evaluate the clinical performance of the ABUS remote-reading mode in breast cancer screening.

Methods

A total of 454 women who underwent breast examinations at the Maternal and Child Health Hospital of Longchuan County, Guangdong Province, from April to October 2021 were retrospectively included. All of them completed both HHUS and ABUS examinations and were assigned BI-RADS classifications accordingly. The scanning and image-reading of HHUS were performed by four ultrasound physicians with over 5 years of experience in breast ultrasound, and the time spent was recorded. ABUS image acquisition was conducted by a technician with at least one year of work experience. The whole-breast images were transmitted to a reading center via dedicated software. Two ultrasound physicians with more than 5 years of experience in breast-specific ultrasound independently interpreted the images and recorded the time spent. All ultrasound images were indepentty reviewed by the readers in a blinded manner. Malignant cases were confirmed by histopathology, while benign and normal cases were confirmed by pathology or two-year follow-up results. The McNemar's test was used to compare sensitivity, specificity, positive predictive value (PPV), and negative predictive value (NPV); the DeLong's test was used for area under the curve (AUC) comparison; the paired-samples t-test was applied to compare total time and ultrasound physician time; and the chi-square test was used to compare the proportional distribution of BI-RADS 1~2, 3, and 4~5 categories.

Results

A total of 454 women were included in our study, with a mean age of (41.49±7.08) years (range: 20~67 years). There were 9 malignant cases and 445 benign and normal cases. Nine malignant cases were detected by ABUS and six by HHUS. Statistically significant differences were found between the two examinations in specificity, positive predictive value, and the AUC (96.9% and 90.8%, P<0.01; 39.1% and 12.8%, P<0.01; 0.99 and 0.85, P=0.028, respectively). The average total time spent was (836±78) seconds for ABUS and (311±77) seconds for HHUS; the average ultrasound physician time spent was (236± 31) seconds for ABUS and (311±77) seconds for HHUS (all P<0.05). For ABUS and HHUS, respectively, the proportions of BI-RADS 1~2 lesions were 68.7% (312/454) and 54.2% (246/454), BI-RADS 3 were 26.2% (119/454) and 35.5% (161/454), and BI-RADS 4~5 were 5.1% (23/454) and 10.4% (47/454). All intergroup differences were statistically significant (P<0.05).

Conclusion

In county-wide hospital settings, the remote-reading mode of ABUS demonstrates higher diagnostic performance for breast cancer compared with HHUS, and the diagnostic time consumed by ultrasound physicians for ABUS is shorter than that for HHUS.

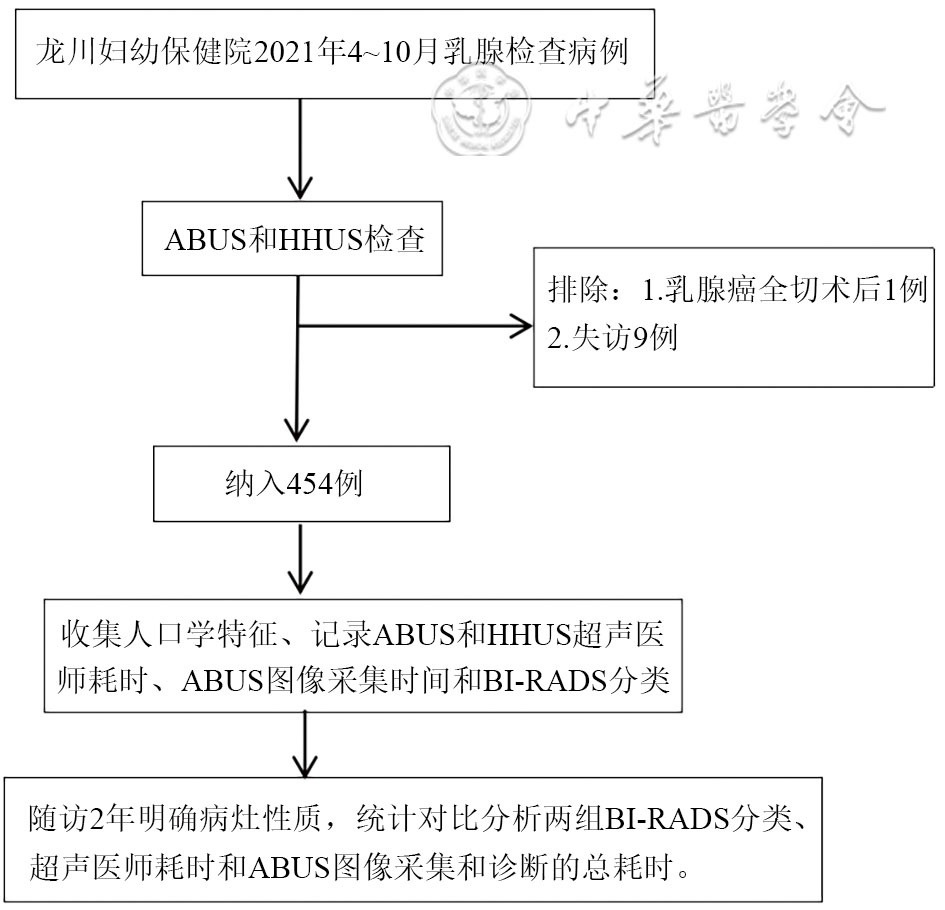

图1 研究对象技术路线图 注:ABUS为自动乳腺超声;HHUS为手持超声;BI-RADS为美国放射学会的乳腺成像报告和数据系统
表1 患者人口统计学和临床特征
表2 ABUS与HHUS 2种检查方式的BI-RADS分类及病理良恶性分布
表3 ABUS与HHUS 2种检查方法诊断效能对比分析
表4 ABUS与HHUS 2种检查方法的BI-RADS分类交叉(例)

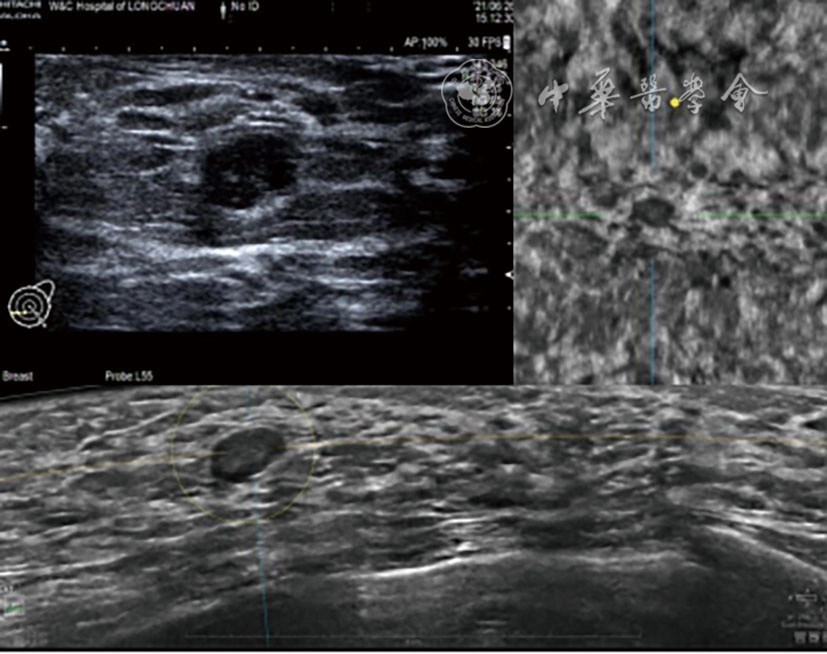

图2 1例36岁女性患者手持超声(HHUS)及自动乳腺超声(ABUS)检查图像。患者女,36岁,左乳6点半方向距乳头2.2 cm处实性结节,形状呈椭圆形,边缘光整,方向平行于皮肤,后方回声略增强。图a为HHUS病灶图像,图b为ABUS冠状面病灶图像,图c为ABUS横断面图像;HHUS评估为BI-RADS 4A类,ABUS评为BI-RADS 3类,经穿刺病理证实为纤维腺瘤
1
Sung H, Ferlay J, Siegel RL, et al. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries[J]. CA Cancer J Clin, 2021, 71(3): 209-249.
2
Liao YS, Zhang JY, Hsu YC, et al. Age-Specific Breast Density Changes in women: A Cross-Sectional Study[J]. Int J Environ Res Public Health, 2020,17(9): 3186.
3
Li J, Zhang BN, Fan JH, et al. A nation-wide multicenter 10-year (1999-2008) retrospective clinical epidemiological study of female breast cancer in China[J]. BMC Cancer, 2011,11: 364.
4
Green M, Raina V. Epidemiology, screening and diagnosis of breast cancer in the Asia-Pacific region: Current perspectives and important considerations[J]. Asia-Pac J Clin Oncol, 2008, 4:S5-S13.
5
Leong SPL, Shen ZZ, Liu TJ, et al. Is Breast Cancer the Same Disease in Asian and Western countries ?[J]. World J. Surg, 2010, 34(10): 2308-2324.
6
Duffy SW, Vulkan D, Cuckle H, et al. Moss SM. Effect of mammographic screening from age 40 years on breast cancer mortality (UK Age trial): final results of a randomised, controlled trial[J]. Lancet Oncol, 2020, 21(9): 1165-1172.
7
Yuan WH, Hsu HC, Chen YY, et al. Supplemental breast cancer-screening ultrasonography in women with dense breasts: a systematic review and meta-analysis[J]. Br J Cancer, 2020, 123(4):673-688.
8
Uematsu T, Izumori A, Moon WK. Overcoming the limitations of screening mammography in Japan and Korea: a paradigm shift to personalized breast cancer screening based on ultrasonography[J]. Ultrasonography, 2023, 42(4): 508-517.
9
Harada-Shoji N, Suzuki A, Ishida T, et al. Evaluation of adjunctive ultrasonography for breast cancer detection among women aged 40-49 years with varying breast density undergoing screening mammography: a secondary analysis of a randomized clinical trial[J]. JAMA Netw Open, 2021, 4(8): e2121505.
10
Uematsu T. Sensitivity and specificity of screening mammography without clinical breast examination among Japanese women aged 40-49 years: analysis of data from the J-START results[J]. Breast Cancer, 2022, 29(50): 928-931.
11
Ohuchi N, Suzuki A, Sobue T, et al. Sensitivity and specificity of mammography and adjunctive ultrasonography to screen for breast cancer in the Japan Strategic Anti-cancer Randomized Trial (J-START): a randomised controlled trial[J]. Lancet, 2016, 387(10016): 341-348.
12
沈松杰,孙强,黄欣,等.中国女性乳腺癌筛查指南(2022年版)[J].中国研究型医院, 2022, 9(2): 6-13.
13
Philadelpho F, Calas M, Carneiro G, et al. Comparison of Automated Breast Ultrasound and Hand-Held Breast Ultrasound in the Screening of Dense Breasts [J]. Rev Bras Ginecol Obstet, 2021, 43(3): 190-199.
14
陶承颜, 冉素真, 林芸, 等. 自动乳腺超声诊断系统在乳腺微小结节良恶性鉴别诊断中的价值[J]. 临床超声医学杂志, 2020, 22(8): 605-608.
15
Chen L, Chen Y, Diao XH, et al. Comparative study of automated breast 3-D ultrasound and handheld B-mode ultrasound for differentiation of benign and malignant breast masses[J]. Ultrasound Med Biol, 2013, 39(10): 1735-1742.
16
Wang L, Qi ZH. Automatic Breast Volume Scanner versus Handheld Ultrasound in Differentiation of Benign and Malignant Breast Lesions: A Systematic Review and Meta-analysis[J]. Ultrasound Med Biol, 2019, 45(8): 1874-1881.
17
Xin Y, Zhang X, Yang Y, et al. A multicenter, hospital-based and non-inferiority study for diagnostic efficacy of automated whole breast ultrasound for breast cancer in China[J]. Sci Rep, 2021, 11(1): 13902.
18
朱罗茜, 包凌云, 朱庆庆, 等. 自动乳腺全容积成像技术及常规超声检查鉴别诊断乳腺影像报告和数据系统 4类病灶良恶性的价值比较[J/OL]. 中华医学超声杂志 (电子版), 2016, 13(12): 931-935.
19
宋灿许, 马菁菁, 李逢生, 等. 自动乳腺容积成像与手持超声对触诊阴性乳腺的诊断价值比较[J].中国医学影像学杂志, 2021, 29(1): 39-41.
