中华医学超声杂志(电子版) ›› 2026, Vol. 23 ›› Issue (02) : 138 -144. doi: 10.3877/cma.j.issn.1672-6448.2026.02.005

心血管超声影像学

超声二维斑点追踪显像技术评估冠心病患者左心房应变特征
孙晖, 徐楠, 宋秋怡, 林秀玉, 曹军英()
  1. 210018 江苏南京,解放军东部战区总医院超声诊断科
  • 收稿日期:2025-11-07 出版日期:2026-02-01
  • 通信作者: 曹军英

Assessment of cardiac function impairment via left atrial strain indices derived from two-dimensional speckle tracking imaging in patients with coronary atherosclerotic heart disease

Hui Sun, Nan Xu, Qiuyi Song, Xiuyu Lin, Junying Cao()

  1. Department of Ultrasound, General Hospital of Eastern Theater Command, PLA, Nanjing 210018, China
  • Received:2025-11-07 Published:2026-02-01
  • Corresponding author: Junying Cao
引用本文:

孙晖, 徐楠, 宋秋怡, 林秀玉, 曹军英. 超声二维斑点追踪显像技术评估冠心病患者左心房应变特征[J/OL]. 中华医学超声杂志(电子版), 2026, 23(02): 138-144.

Hui Sun, Nan Xu, Qiuyi Song, Xiuyu Lin, Junying Cao. Assessment of cardiac function impairment via left atrial strain indices derived from two-dimensional speckle tracking imaging in patients with coronary atherosclerotic heart disease[J/OL]. Chinese Journal of Medical Ultrasound (Electronic Edition), 2026, 23(02): 138-144.

目的

应用超声二维斑点追踪显像(2DSTI)技术应变指标评估冠心病患者左心房功能。

方法

选取2021年6月至2023年12月解放军东部战区总医院经冠状动脉造影检查确诊的冠心病患者83例,其中左心室射血分数(LVEF)≥50%的患者43例,作为LVEF正常组,LVEF<50%的患者40例,作为LVEF减低组。另选择同期健康体检者22人作为健康对照组。采用常规超声心动图测量左心房容积指数(LAVI)、左心房最大容积(LAVmax)、左心房最小容积(LAVmim)、左心房收缩前容积(LAVpreA)、左心房排空分数(LAEF)。采用2DSTI技术测量左心房储器期应变(LASr)、管道期应变(LAScd)和收缩期纵向应变(LASct)。采用方差分析比较3组研究对象左心房功能指标的差异。绘制受试者操作特征(ROC)曲线分析左心房期相应变指标与左心室整体纵向应变(LVGLS)对冠心病患者心脏功能损害的诊断效能、确定截断值,并采用DeLong检验比较各指标诊断效能的差异。

结果

LVEF正常组常规超声心动图左心房功能指标LAVI、LAVmax、LAVmim、LAVpreA、LAEF与健康对照组比较,差异均无统计学意义(P均>0.05);LVEF正常组2DSTI技术应变指标LASr、LAScd低于健康对照组[(30.86±10.55)% vs(41.79±6.89)%;(15.48±6.57)% vs(20.39±3.76)%],差异具有统计学意义(P<0.05),而LVGLS、LASct与健康对照组比较,差异无统计学意义(P>0.05)。LVEF减低组常规超声心动图左心房功能指标LAVI、LAVmax、LAVmim、LAVpreA、LAEF及左心房应变指标LASr、LAScd、LASct与健康对照组和LVEF正常组比较[(44.95±21.22)ml/m2vs(30.56±20.55)ml/m2vs(32.47±16.51)ml/m2;(30.41±6.32)ml vs(19.00±5.01)ml vs(22.88±4.24)ml;(19.45±7.33)ml vs(7.37±2.57)ml vs(9.36±2.64)ml;(32.13±6.54)ml vs(13.73±4.77)ml vs(26.13±7.17)ml;(26.77±10.90)% vs(45.77±7.17)% vs(45.05±12.34)%;(17.37±10.89)% vs(41.79±6.89)% vs(30.86±10.55)%;(8.78±5.33)% vs(20.39±3.76)% vs(15.48±6.57)%;(8.79±7.95)% vs(15.00±8.74)% vs(15.38±6.64)%],差异均具有统计学意义(F=21.613、4.833、0.547、13.579、6.688、31.436、21.613、4.833,P均<0.001)。ROC曲线分析显示,LASr、LAScd、LASct和LVGLS诊断冠心病患者心脏功能损害的曲线下面积(AUC)分别为0.859、0.810、0.535和0.778,DeLong检验显示LASr、LAScd、LVGLS诊断冠心病患者心脏功能损害效能差异无统计学意义(P>0.05),均高于LASct,差异具有统计学意义(P<0.001、<0.001、=0.008);LASr诊断冠心病患者心脏功能损害截断值为34.2%时敏感度、特异度分别为90.9%、78.4%;LAScd诊断冠心病患者心脏功能损害截断值为14.9%时敏感度、特异度分别为95.5%、62.5%。

结论

2DSTI技术左心房应变指标LASr、LAScd可以较左心室应变指标LVGLS更早反映冠心病患者亚临床期心脏功能损害,有望成为冠心病患者心脏功能早期损害的重要补充评价指标;不同LVEF水平的冠心病患者左心房期相应变具有不同的损害特征,该特征可以间接反映冠心病患者病情严重程度。

Objective

To evaluate left atrial function in patients with coronary atherosclerotic heart disease (CAD) via strain parameters derived from two-dimensional speckle tracking imaging (2DSTI).

Methods

Eighty-three patients with CAD confirmed by coronary angiography were included in this study. Among them, 43 patients with a left ventricular ejection fraction (LVEF) ≥ 50% were assigned to a normal LVEF group, and 40 patients with an LVEF <50% to a reduced LVEF group. Additionally, 22 healthy individuals who underwent routine health examinations during the same period were enrolled as a control group. Left atrial volume index (LAVI), maximal left atrial volume (LAVmax), minimal left atrial volume (LAVmin), pre-atrial contraction left atrial volume (LAVpreA), and left atrial emptying fraction (LAEF) were measured by conventional echocardiography, while left atrial reservoir strain (LASr), conduit strain (LAScd), and contraction strain (LASct) were assessed using two-dimensional speckle tracking echocardiography (2D-STE). Analysis of variance (ANOVA) was used to compare differences in left atrial function among the three groups. Receiver operating characteristic (ROC) curve analysis was performed to evaluate and compare the diagnostic performance of left atrial phasic strain parameters and the left ventricular global longitudinal strain (LVGLS) in identifying impaired cardiac function in CAD patients, and to determine their optimal cutoff values.

Results

There were no significant differences in conventional echocardiographic parameters of left atrial function, including LAVI, LAVmax, LAVmin, LAVpreA, and LAEF, between the normal LVEF group and the healthy control group (all P>0.05). The left atrial strain indices LASr and LAScd measured by 2DSTE in the normal LVEF group were significantly lower than those of the healthy control group [(30.86±10.55)% vs (41.79±6.89)%; (15.48±6.57)% vs (20.39±3.76)%, both P<0.05]. However, there was no significant difference in LVGLS or LASct between the normal LVEF group and the healthy control group (both P>0.05). In the reduced LVEF group, conventional echocardiographic parameters of left atrial function including LAVI, LAVmax, LAVmin, LAVpreA, and LAEF, as well as the left atrial strain indices LASr, LAScd, and LASct, were statistically different from those of both the healthy control group and the normal LVEF group [(44.95±21.22) ml/m2 vs (30.56±20.55) ml/m2vs (32.47±16.51) ml/m2; (30.41±6.32) ml vs (19.00±5.01) ml vs (22.88±4.24) ml; (19.45±7.33) ml vs (7.37±2.57) ml vs (9.36±2.64) ml; (32.13±6.54) ml vs (13.73±4.77) ml vs (26.13±7.17) ml; (26.77±10.90)% vs (45.77±7.17)% vs (45.05±12.34)%; (17.37±10.89)% vs (41.79±6.89)% vs (30.86±10.55)%; (8.78±5.33)% vs (20.39±3.76)% vs (15.48±6.57)%; (8.79±7.95)% vs (15.00±8.74)% vs (15.38±6.64)%, all P<0.05]. ROC curve analysis revealed that the area under the curve (AUC) values for LASr, LAScd, LASct, and LVGLS in diagnosing impaired cardiac function in CAD patients were 0.859, 0.810, 0.535, and 0.778, respectively. The DeLong test showed that the LASr, LAScd, and LVGLS indicators had comparable efficacy in diagnosing cardiac function impairment in CAD patients (P>0.05), and they were all significantly superior to the LASct indicator (P<0.05). For LASr, a cutoff value of 34.2% yielded a sensitivity of 90.9% and specificity of 78.4%. For LAScd, a cutoff value of 14.9% provided a sensitivity of 95.5% and specificity of 62.5%.

Conclusion

In CAD patients, left atrial strain parameters derived from 2D-STE, including LASr and LAScd, can detect subclinical cardiac dysfunction earlier than LVGLS, and thus may serve as valuable complementary indicators for the early assessment of cardiac impairment in CAD patients. Moreover, CAD patients with different LVEF levels exhibit distinct patterns of left atrial phasic strain impairment, which may indirectly reflect the severity of the disease.

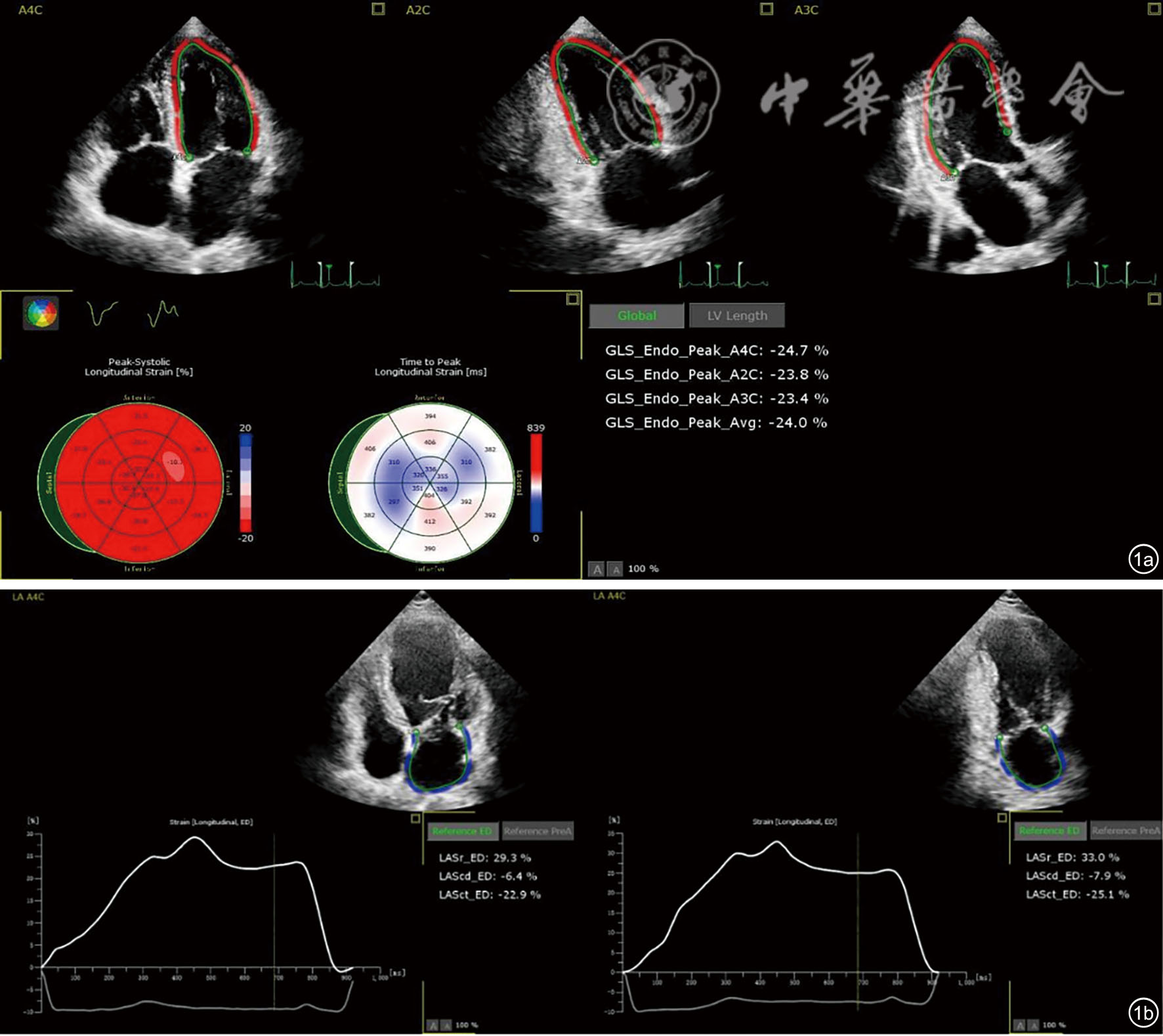

图1 心脏二维斑点追踪应变曲线图像。图a为左心室感兴趣区及应变曲线;图b为左心房感兴趣区及应变曲线
表1 3组研究对象一般情况及临床资料比较
表2 3组研究对象常规超声心动图左心房功能指标比较(
±s
表3 3组研究对象二维斑点追踪显像应变指标比较(%,
±s

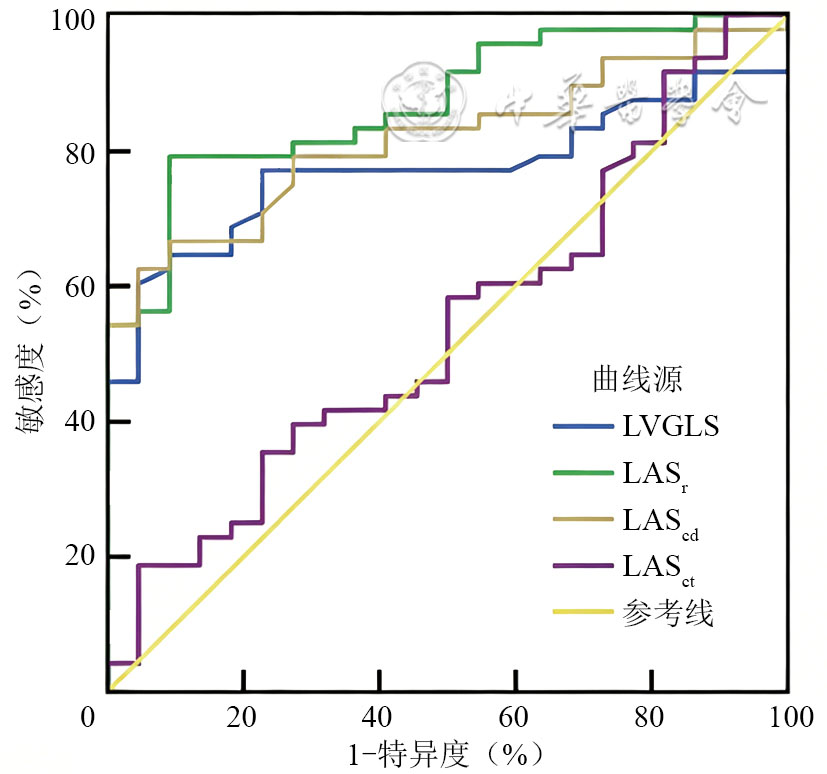

图2 LASr、LAScd、LASct、LVGLS指标对冠心病患者心脏功能损害的诊断效能 注:LVGLS为左心室纵向应变,LASr为左心房储器期应变,LAScd为左心房管道期应变,LASct为左心房收缩期应变
1
Barbier P, Solomon SB, Schiller NB, et al. Left atrial relaxation and left ventricular systolic function determine left atrial reservoir function [J]. Circulation, 1999, 100(4): 427-436.
2
D'Andrea A, Caso P, Romano S, et al. Different effects of cardiac resynchronization therapy on left atrial function in patients with either idiopathic or ischaemic dilated cardiomyopathy: a two-dimensional speckle strain study [J]. Eur Heart J, 2007, 28(22): 2738-2748.
3
Cameli M, Caputo M, Mondillo S, et al. Feasibility and reference values of left atrial longitudinal strain imaging by two-dimensional speckle tracking [J]. Cardiovasc Ultrasound, 2009, 7: 6.
4
Montalescot G, Sechtem U, Achenbach S, et al. 2013 ESC guidelines on the management of stable coronary artery disease: the Task Force on the management of stable coronary artery disease of the European Society of Cardiology [J]. Eur Heart J, 2013, 34(38): 2949-3003.
5
Paulus WJ, Tschöpe C. A novel paradigm for heart failure with preserved ejection fraction: comorbidities drive myocardial dysfunction and remodeling through coronary microvascular endothelial inflammation [J]. J Am Coll Cardiol, 2013, 62(4): 263-271.
6
Mitchell C, Rahko PS, Blauwet LA, et al. Guidelines for performing a comprehensive transthoracic echocardiographic examination in adults: recommendations from the American Society of Echocardiography [J]. J Am Soc Echocardiog, 2018, 32(1): 1-64.
7
Barbier P, Solomon SB, Schiller NB, et al. Left atrial relaxation and left ventricular systolic function determine left atrial reservoir function [J]. Circulation, 1999, 100(4): 427-436.
8
Rosca M, Lancellotti P, Popescu BA, et al. Left atrial function: pathophysiology, echocardiographic assessment, and clinical applications [J]. Heart, 2011, 97(23): 1982-1989.
9
Leung DY, Boyd A, Ng AA, et al. Echocardiographic evaluation of left atrial size and function: current understanding, pathophysiologic correlates, and prognostic implications [J]. Am Heart J, 2008, 156(6): 1056-1064.
10
Duggan JP, Peters AS, Trachiotis GD, et al. Epidemiology of coronary artery disease [J]. Surg Clin N Am, 2022, 102(3): 499-516.
11
Montgomery DE, Puthumana JJ, Fox JM, et al. Global longitudinal strain aids the detection of non-obstructive coronary artery disease in the resting echocardiogram [J]. Eur Heart J-Card Img, 2011, 13(7): 579-587.
12
Nucifora G, Schuijf JD, Delgado V, et al. Incremental value of subclinical left ventricular systolic dysfunction for the identification of patients with obstructive coronary artery disease [J]. Am Heart J, 2010, 159(1): 148-157.
13
Koulaouzidis G, Kleitsioti P, Kalaitzoglou M, et al. Left ventricular longitudinal strain detects ischemic dysfunction at rest, reflecting significant coronary artery disease [J]. Diagnostics (Basel), 2025, 15(9): 1102.
14
Hagemann CA, Hoffmann S, Hagemann RA, et al. Usefulness of layer-specific strain in diagnosis of coronary artery disease in patients with stable angina pectoris [J]. Int J Cardiovas Imag, 2019, 35(11): 1989-1999.
15
Levent F, Koca F. Impact of residual coronary artery disease on left ventricular function after percutaneous coronary intervention: a two-dimensional strain echocardiography study [J]. Herz, 2022, 48(2): 152-158.
16
Abou R, van der Bijl P, Bax JJ, et al. Global longitudinal strain: clinical use and prognostic implications in contemporary practice [J]. Heart, 2020, 106(18): 1438-1444.
17
Sharifov OF, Denney TS, Girard AA, et al. Coronary artery disease is associated with impaired atrial function regardless of left ventricular filling pressure [J]. Int J Cardiol, 2023, 387: 131102.
18
Baysan O, Yokusoglu M, Uzun M, et al. Left atrial functions after myocardial infarction [J]. Heart Vessels, 2005, 20(2): 56-60.
19
Tewari S, Khare H, Sahu A, et al. Left atrial functional assessment a prime clue in solving the puzzle of stable angina symptoms in suspected coronary artery disease patients [J]. Eur Heart J, 2023, 44(Supple 2):doi: 10.1093/eurheartj/ehad655.085.
