中华医学超声杂志(电子版) ›› 2026, Vol. 23 ›› Issue (06) : 482 -489. doi: 10.3877/cma.j.issn.1672-6448.2026.06.007

妇产科超声影像学

Pierre Robin序列征胎儿产前超声诊断价值与临床特点
谢忱忱1, 钟春燕1, 张晓航1, 陈松1, 冉茜1, 孙阳2,†()
  1. 1 401147 重庆,重庆市妇幼保健院(重庆医科大学附属妇女儿童医院)超声科
    2 400010 重庆,重庆医科大学附属第二医院超声科、超声分子影像诊疗重庆市重点实验室、重庆医科大学影像学研究所
  • 收稿日期:2025-09-21 出版日期:2026-06-01
  • 通信作者: 孙阳
  • 基金资助:
    重庆市卫生健康领域国家级后备人才项目(HBRC202404)

Prenatal ultrasound diagnosis and clinical characteristics of fetuses with Pierre Robin sequence

Chenchen Xie1, Chunyan Zhong1, Xiaohang Zhang1, Song Chen1, Qian Ran1, Yang Sun2,†()

  1. 1 Department of Ultrasound, Chongqing Health Center for Women and Children, Chongqing 401147, China
    2 Department of Ultrasound, The Second Affiliated Hospital of Chongqing Medical University, Chongqing Key Laboratory of Ultrasound Molecular Imaging and Therapy, Institute of Ultrasound Imaging, Chongqing Medical University, Chongqing 400010, China
  • Received:2025-09-21 Published:2026-06-01
  • Corresponding author: Yang Sun
引用本文:

谢忱忱, 钟春燕, 张晓航, 陈松, 冉茜, 孙阳. Pierre Robin序列征胎儿产前超声诊断价值与临床特点[J/OL]. 中华医学超声杂志(电子版), 2026, 23(06): 482-489.

Chenchen Xie, Chunyan Zhong, Xiaohang Zhang, Song Chen, Qian Ran, Yang Sun. Prenatal ultrasound diagnosis and clinical characteristics of fetuses with Pierre Robin sequence[J/OL]. Chinese Journal of Medical Ultrasound (Electronic Edition), 2026, 23(06): 482-489.

目的

探讨Pierre Robin序列征(PRS)胎儿的产前超声特征及临床特点,旨在分析PRS胎儿的超声表现与出生后临床结局之间的关系,为产前诊断和围产期管理提供参考依据。

方法

回顾性分析2019年1月至2024年12月重庆市妇幼保健院完成产前超声检查并诊断为PRS的23例胎儿资料,所有病例均经引产或分娩后检查确诊。采用多切面超声对胎儿进行评估,量化指标包括下颌面部角(IFA)、下颌指数(JI),并对舌后坠、腭裂类型进行形态学观察,同时记录合并畸形情况。进一步收集病例的临床资料、遗传学检测结果(包括染色体微阵列分析、全外显子测序等)及妊娠结局,系统总结PRS胎儿的产前超声特征、临床特点及预后相关因素。

结果

(1)超声特征:23例PRS胎儿均存在小下颌(IFA范围33.7°~49.6°,均值44.2°±3.8°;JI范围21.4~46.1,均值31.1±6.7)及舌后坠(100%);腭裂检出率为100%(23/23),其中U型腭裂占26.1%(6/23);合并畸形发生率为52.2%(12/23),以循环系统异常(26.1%,6/23)和神经系统异常(21.7%,5/23)最常见。(2)遗传学:7例行遗传学检查,其中2例通过全外显子组测序检出临床意义未明基因变异。(3)妊娠结局:19例选择引产终止妊娠;4例继续妊娠并活产(其中3例为孤立性PRS,1例合并心脏异常)。活产新生儿中,3例需机械通气支持,1例未使用机械通气,均于出生后接受手术治疗,随访1年预后良好。

结论

PRS产前诊断需联合多切面超声的系统评估,结合遗传学检测可识别综合征型病例,并通过多学科协作下的分层管理可优化妊娠结局及改善孤立性病例的预后。

Objective

To investigate the prenatal ultrasonographic features and clinical characteristics of fetuses with Pierre Robin sequence (PRS) and analyze the correlation between prenatal ultrasound findings and postnatal clinical outcomes, so as to provide reference for prenatal diagnosis and perinatal management.

Methods

A retrospective analysis was conducted on 23 fetuses diagnosed with PRS by prenatal ultrasound at Chongqing Health Center for Women and Children between January 2019 and December 2024. All cases were confirmed by postnatal examination or postmortem evaluation following termination of pregnancy. Multiphase ultrasound assessments were performed, including quantitative measurements of the inferior facial angle (IFA) and jaw index (JI), as well as morphological evaluations of glossoptosis and cleft palate types. Associated malformations were also recorded. Clinical data, genetic testing results (including chromosomal microarray analysis and whole-exome sequencing [WES]), and pregnancy outcomes were collected to systematically summarize the clinical features and prognostic factors of PRS fetuses.

Results

Regarding ultrasonographic features, all 23 cases exhibited micrognathia (IFA range: 33.7°~49.6°, mean: 44.2°±3.8°; JI range: 21.4~46.1, mean: 31.1±6.7) and glossoptosis (100%). Cleft palate was detected in all cases (23/23), with U-shaped cleft palate accounting for 26.1% (6/23). Associated malformations were present in 52.2% (12/23) of cases, with circulatory system anomalies (26.1%, 6/23) and nervous system anomalies (21.7%, 5/23) being the most frequently observed. Genetic testing was conducted in 7 cases, of which 2 exhibited variants of uncertain significance (VUS) on WES. Regarding pregnancy outcomes, termination of pregnancy was elected in 19 cases, while the remaining 4 cases continued to term, resulting in live births (3 isolated PRS, 1 with cardiac anomaly). Among the live births, 3 required mechanical ventilation for respiratory support, while 1 did not. All 4 neonates underwent postnatal surgical intervention, and favorable outcomes were observed during the 1-year follow-up.

Conclusion

Prenatal diagnosis of PRS requires integrated multiphase ultrasound and genetic testing. Multidisciplinary stratified management may improve pregnancy outcomes and prognosis, particularly in isolated cases.

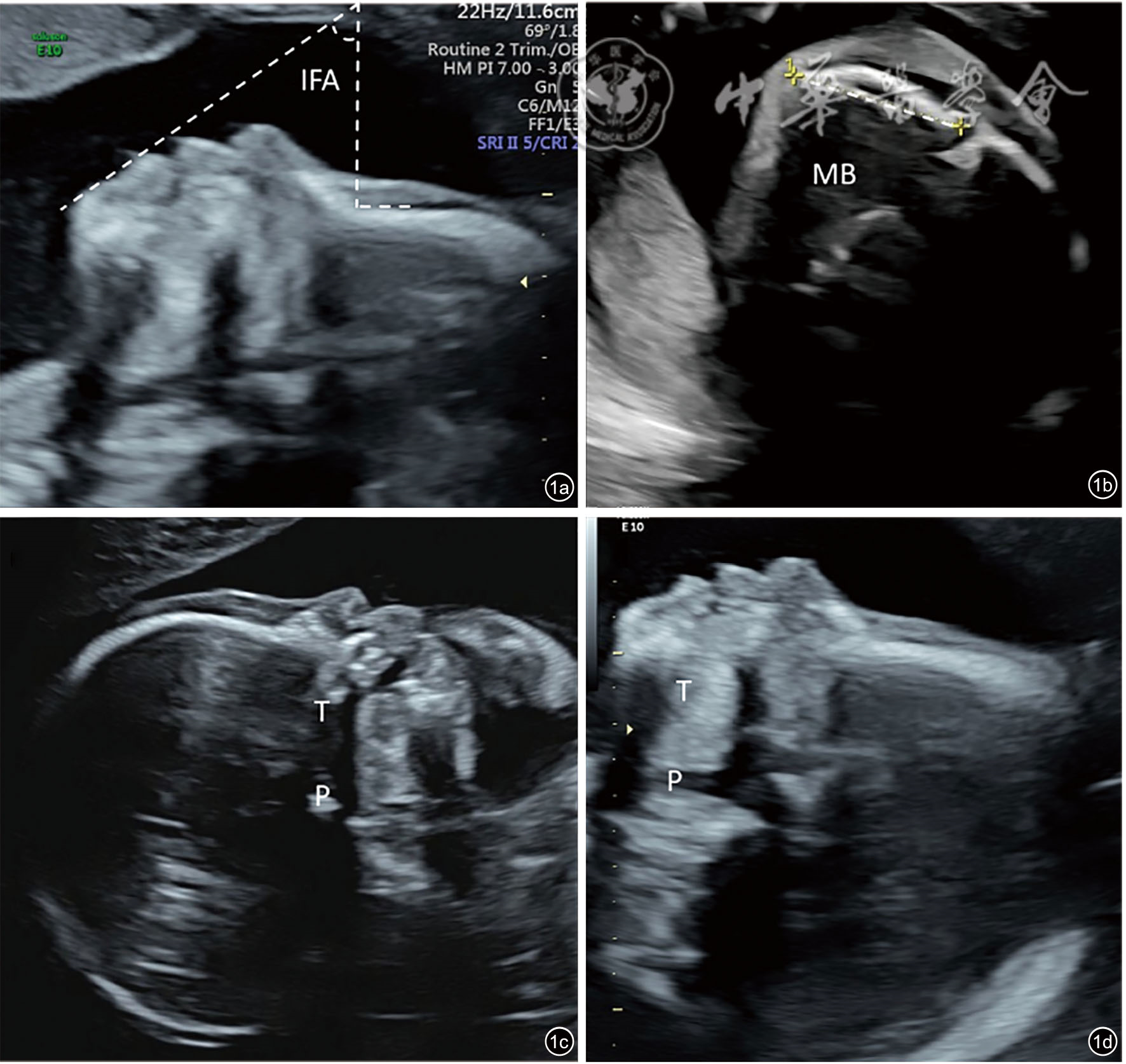

图1 Pierre Robin序列征(PRS)胎儿的产前超声检查及测量。图a为在正中矢状切面测量PRS胎儿的IFA;图b为下颌骨切面测量下颌骨长度;图c为下颌矢状切面PRS胎儿显示舌后坠及咽间隙变窄;图d为正常胎儿下颌矢状切面显示舌位置及咽间隙正常(T为舌,P为口咽)
图2 Pierre Robin序列征(PRS)胎儿超声特征。图a为PRS胎儿正中矢状切面显示小下颌(箭头所指为小下颌);图b为PRS胎儿经口裂硬腭斜冠状切面显示腭裂(箭头所指为腭裂);图c为PRS胎儿引产后外观显示小下颌;图d为PRS胎儿引产后显示腭裂(CP为腭裂)
表1 23例PRS病例的一般情况
病例序号 孕妇年龄(岁) 孕周(周) IFA(°) JI 合并畸形 妊娠结局
1 27 23+6 48.2 46.1 Blake's囊肿、四肢长骨偏短、胸腺发育不良 引产
2 29 23 49.6 35.3 小脑蚓部发育不全、小脑下蚓部缺失、右侧室管膜下囊肿、肺动脉主干内径稍增宽 引产
3 31 24+2 42.2 45.0 无 引产
4 26 22+4 49.1 45.5 无 出生
5 26 22+4 44.2 44.5 无 出生
6 29 22+6 48.0 31.5 无 引产
7 27 23 41.9 30.3 无 引产
8 23 22+6 40.2 30.1 无 引产
9 24 22+2 41.1 32 无 引产
10 25 23+1 42.0 27.5 无 引产
11 36 22+4 42.7 29.5 无 引产
12 23 24 38.6 22.5 小脑横径小、脑沟回发育异常、双耳耳廓测值较小、左耳形态失常、左耳附耳、室间隔缺损 引产
13 27 26+2 43.8 33.3 双上腔静脉、冠状静脉窦增宽、室间隔缺损(膜周型)、右锁骨下动脉迷走 出生
14 25 24+4 45.3 27.6 无 出生
15 32 23+2 46.0 35.5 无 引产
16 25 22+4 44.4 31.5 单脐动脉 引产
17 30 22+4 47.2 30.5 右侧鼻骨未显示、小脑测值小、单脐动脉;肠管回声增强、完全型肺静脉异位引流(心内型)、室间隔缺损(膜周型)、右锁骨下动脉迷走 引产
18 27 22+6 48.6 30.1 右侧鼻骨未显示、静脉导管-体静脉分流 引产
19 24 18+6 41.0 29.5 四肢长骨短小、双足内翻 引产
20 38 24 43.8 21.4 鼻骨未显示、双侧小耳畸形 引产
21 26 23+3 33.7 39.1 头颅测值偏小、顶枕沟及大脑外侧裂稍平坦 引产
22 28 24 48.8 31.1 四肢长骨偏短、双足内翻、椎体骨化延迟 引产
23 28 24+3 45.0 30.9 完全型房室间隔缺损、右室双出口、双上腔静脉、冠状静脉窦增宽 引产
表2 7例行侵入性遗传学检测PRS的遗传学检测结果及妊娠结局
1
Wright M, Cortina-Borja M, Knowles R, et al. Global birth prevalence of Robin sequence in live-born infants: a systematic review and meta-analysis[J]. Eur Respir Rev, 2023, 32(170): 230133.
2
Vatlach S, Maas C, Poets CF. Birth prevalence and initial treatment of Robin sequence in Germany: a prospective epidemiologic study[J]. Orphanet J Rare Dis, 2014, 17: 9: 9.
3
Weaver KN, Sullivan BR, Balow SA, et al. Robin sequence without cleft palate: genetic diagnoses and management implications[J]. Am J Med Genet A, 2022, 188(1): 160-177.
4
Santoro M, Coi A, Barišić I, et al. Epidemiology of Pierre-Robin sequence in Europe: A population-based EUROCAT study[J]. Paediatr Perinat Epidemiol, 2021, 35(5): 530-539.
5
Bronshtein M, Blazer S, Zalel Y, et al. Ultrasonographic diagnosis of glossoptosis in fetuses with Pierre Robin sequence in early and mid pregnancy[J]. Am J Obstet Gynecol, 2005, 193(4): 1561-1564.
6
Printzlau A, Andersen M. Pierre Robin sequence in Denmark: a retrospective population-based epidemiological study[J]. Cleft Palate-Cran J, 2004, 41(1): 47-52.
7
Atton G, Baralle D. Epidemiology of Robin sequence: geographical variation in the UK / Ireland[J]. Arch Dis Child, 2024, 109(3): 177-178.
8
夏溦瑶, 罗岩坤, 贾仲林. Pierre Robin序列征的精准诊断和遗传病因学研究进展[J]. 国际口腔医学杂志, 2023, 50(3): 287-292.
9
Malarbi S, Chisholm AK, Gunn-Charlton JK, et al. Intellectual Functioning of Children With Isolated PRS, PRS-Plus, and Syndromic PRS[J]. Cleft Palate-Cran J, 2022, 61(1): 33-39.
10
Côté A, Fanous A, Almajed A, et al. Pierre Robin sequence: review of diagnostic and treatment challenges[J]. Int J Pediatr Otorhi, 2015, 79(4): 451-464.
11
官勇, 李胜利, 陈琮瑛, 等. 产前超声诊断Pierre Robin序列征[J]. 中华超声影像学杂志, 2020, 29(9): 790-793.
12
陈鑫, 崔杰. 影像学及三维数字化技术在Pierre Robin序列征早期诊断中的应用进展[J]. 临床小儿外科杂志, 2023, 22(6): 597-600.
13
Rotten D, Levaillant JM, Martinez H, et al. The fetal mandible: a 2D and 3D sonographic approach to the diagnosis of retrognathia and micrognathia[J]. Ultrasound Obst Gyn, 2002, 19(2): 122-130.
14
Paladini D, Morra T, Teodoro A, et al. Objective diagnosis of micrognathia in the fetus: the jaw index[J]. Obstet Gynecol, 1999, 93(3): 382-6.
15
Pendem S, Jayakumar NK, Gopalakrishnan S, et al. Systematic review and meta-analysis of surgical approaches for improving airway stability in infants with Robin sequence: evaluating complications and outcomes[J]. Br J Oral Maxillofac Surg, 2024, 62(6): 511-522.
16
Goel D, Wilson A, Rao S, et al. Robin sequence: from dilemmas to developing an adaptable standardized stepwise approach[J]. Acta Paediatr, 2025, 114(8): 1760-1777.
17
陆雅萍, 王雯, 靳元元, 等. 胎儿小下颌畸形病例的临床特点及妊娠结局: 52例分析[J]. 中华围产医学杂志, 2024, 27(8): 637-642.
18
Breugem CC, Evans KN, Poets CF, et al. Best practices for the diagnosis and evaluation of infants with robin sequence: a clinical consensus report[J]. Jama Pediatr, 2016, 170(9): 894-902.
19
Davies A, Davies A, Wren Y, et al. Syndromes associated with Robin sequence: a national prospective cohort study[J]. Arch Dis Child, 2022, 108(1): 42-46.
20
Stranneheim H, Lagerstedt-Robinson K, Magnusson M, et al. Integration of whole genome sequencing into a healthcare setting: high diagnostic rates across multiple clinical entities in 3219 rare disease patients[J]. Genome Med, 2021, 13(1): 40.
