中华医学超声杂志(电子版) ›› 2026, Vol. 23 ›› Issue (07) : 588 -594. doi: 10.3877/cma.j.issn.1672-6448.2026.07.006

浅表器官超声影像学

多模态超声评估颅内高压及其与视盘水肿严重程度的相关性
应康1,2, 郭良云1, 龚晓军3, 余志宏4, 张奎一1, 章春泉1,†()
  1. 1 330006 南昌,南昌大学第二附属医院超声科
    2 330031 南昌,浙江大学医学院附属第一医院江西医院超声科
    3 344800 江西抚州,江西省金溪县中医院超声科
    4 330006 南昌,南昌大学第二附属医院综合重症监护室
  • 收稿日期:2026-01-20 出版日期:2026-07-01
  • 通信作者: 章春泉
  • 基金资助:
    江西省卫生健康委科技计划(202510381)

Multimodal ultrasound assessment of intracranial hypertension: correlation with optic disc edema severity

Kang Ying1,2, Liangyun Guo1, Xiaojun Gong3, Zhihong Yu4, Kuiyi Zhang1, Chunquan Zhang1,†()

  1. 1 Department of Ultrasound, the Second Affiliated Hospital of Nanchang University, Nanchang 330006, China
    2 Department of Ultrasound, the Jiangxi Branch of the First Affiliated Hospital, School of Medicine, Zhejiang University, Nanchang 330031, China
    3 Ultrasound Department, Jinxi County Hospital of Traditional Chinese Medicine, Jinxi County, Fuzhou 344800, China
    4 Comprehensive Intensive Care Unit, the Second Affiliated Hospital of Nanchang University, Nanchang 330006, China
  • Received:2026-01-20 Published:2026-07-01
  • Corresponding author: Chunquan Zhang
引用本文:

应康, 郭良云, 龚晓军, 余志宏, 张奎一, 章春泉. 多模态超声评估颅内高压及其与视盘水肿严重程度的相关性[J/OL]. 中华医学超声杂志(电子版), 2026, 23(07): 588-594.

Kang Ying, Liangyun Guo, Xiaojun Gong, Zhihong Yu, Kuiyi Zhang, Chunquan Zhang. Multimodal ultrasound assessment of intracranial hypertension: correlation with optic disc edema severity[J/OL]. Chinese Journal of Medical Ultrasound (Electronic Edition), 2026, 23(07): 588-594.

目的

探讨应用剪切波弹性成像(SWE)测量的视乳头平均杨氏模量(Emean)联合二维超声测量的视神经鞘直径(ONSD),对脑出血所致颅内压升高的诊断价值,并分析上述参数与视盘水肿严重程度的相关性。

方法

前瞻性纳入2022年2月至2024年12月南昌大学第二附属医院脑出血致颅内高压患者及健康志愿者各36例。对患者行眼底检查,并依据Frisén量表对视盘水肿进行分级,根据最终分级结果,将颅内高压组患者进一步分为无/轻度水肿亚组与中/重度水肿亚组。采用二维超声测量ONSD,应用SWE技术测量视乳头Emean。采用独立样本t检验比较组间ONSD与Emean的差异;通过受试者操作特征(ROC)曲线评估各参数及联合参数模型(由二元Logistic回归构建)的诊断效能;采用Spearman等级相关分析评估颅内高压组内各参数与视盘水肿分级的相关性。

结果

颅内高压组ONSD与Emean均显著高于健康对照组[(5.42±0.72)mm vs(4.53±0.25)mm;(25.38±2.72)kPa vs(17.65±1.48)kPa],差异具有统计学意义(t=6.881、14.786,P均<0.001)。诊断颅内高压的ONSD、Emean临界值分别为5.10 mm和21.2 kPa,其曲线下面积(AUC)分别为0.83和0.93,而两者联合诊断的AUC达0.95。亚组分析显示,中/重度水肿亚组ONSD与Emean均显著高于无/轻度水肿亚组[15例 vs 21例;(5.86±0.65)mm vs(5.12±0.61)mm;(28.02±1.98)kPa vs(23.45±2.01)kPa],差异具有统计学意义(t=3.452,P=0.002;t=6.577,P<0.001)。相关性分析进一步表明,Emean及ONSD均与视盘水肿分级呈正相关(r=0.782、0.621,P均<0.001)。

结论

由ONSD与Emean构成的超声多模态参数,对脑出血所致颅内压升高具有良好的诊断价值,且其参数变化与视盘水肿严重程度相关。联合应用两项参数可进一步提高诊断效能,为颅内高压的无创评估提供了新的影像学方法。

Objective

To investigate the diagnostic value of combined shear wave elastography (SWE)-derived mean Young's modulus (Emean) of the optic disc and optic nerve sheath diameter (ONSD) for detecting increased intracranial pressure (ICP) due to intracerebral hemorrhage, and to explore the correlation of these parameters with the severity of optic disc edema.

Methods

This prospective study enrolled 36 patients with intracranial hypertension secondary to intracerebral hemorrhage and 36 healthy volunteers at the Second Affiliated Hospital of Nanchang University between February 2022 and December 2024. All patients underwent funduscopic examination, and optic disc edema was graded using the Frisén scale. Based on the grading results, the intracranial hypertension group was further subdivided into a no/mild edema subgroup and a moderate/severe edema subgroup. ONSD was measured using two-dimensional ultrasound, while Emean of the optic nerve head was assessed via SWE. Intergroup differences in ONSD and Emean were compared using independent-samples t-tests. The diagnostic performance of each individual parameter and the combined model (constructed by binary logistic regression) was evaluated using receiver operating characteristic (ROC) curves. Spearman rank correlation analysis was applied to assess the relationship between each parameter and the optic disc edema grade within the intracranial hypertension group.

Results

Both ONSD and Emean were significantly higher in the intracranial hypertension group than in the control group [(5.42±0.72) mm vs (4.53±0.25) mm, t=6.881; (25.38±2.72) kPa vs (17.65±1.48) kPa, t=14.786; both P<0.001]. The optimal cutoff values of ONSD and Emean for diagnosing intracranial hypertension were 5.10 mm and 21.2 kPa, yielding areas under the curve (AUC) of 0.83 and 0.93, respectively. The combined model achieved an AUC of 0.95, surpassing that of either parameter alone. Subgroup analysis revealed that both ONSD and Emean were significantly higher in the moderate/severe edema subgroup than in the no/mild edema subgroup [15 vs 21 cases; (5.86±0.65) mm vs (5.12±0.61) mm, t=3.452, P=0.002; (28.02±1.98) kPa vs (23.45±2.01) kPa, t=6.577, P<0.001]. Furthermore, Spearman correlation analysis demonstrated that both Emean and ONSD were positively correlated with the grade of optic disc edema (r=0.782 and 0.621, respectively; both P<0.001).

Conclusion

The multimodal ultrasound parameters comprising ONSD and SWE-derived Emean demonstrate good diagnostic value for intracranial hypertension caused by intracerebral hemorrhage, and their changes correlate with the severity of optic disc edema. The combination of these two parameters further enhances diagnostic performance, providing a novel non-invasive imaging approach for the assessment of elevated intracranial pressure.

表1 2组研究对象一般临床资料及超声参数比较
图1 二维灰阶超声测量视神经鞘直径(图a)及剪切波弹性成像测量视乳头的平均杨氏模量(图b)
表2 颅内高压患者不同视盘水肿严重程度亚组间超声参数比较(
±s)

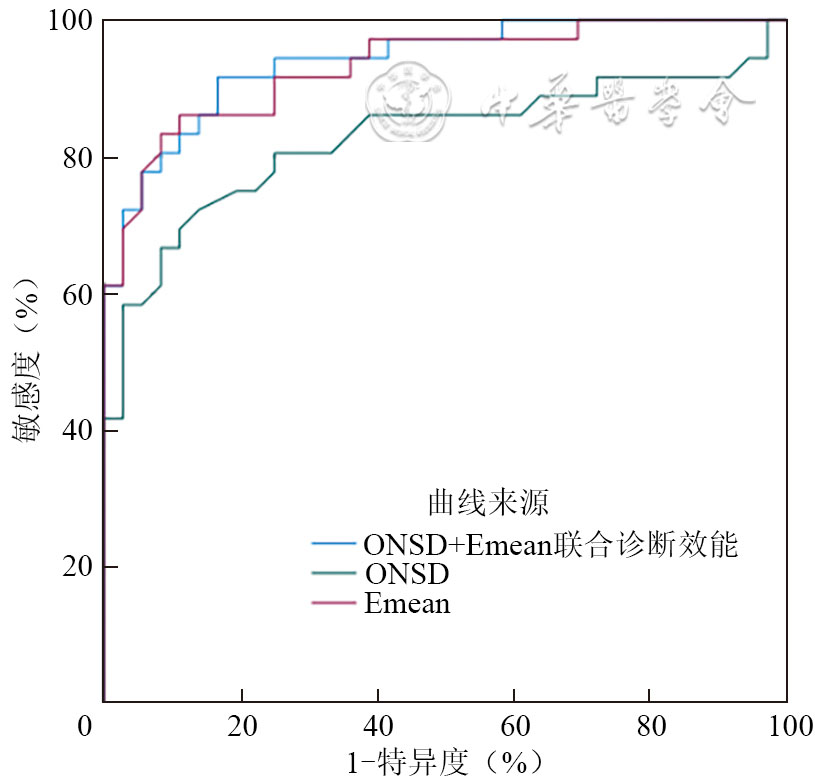

图2 ONSD、Emean和ONSD联合Emean诊断颅内高压的受试者操作特征曲线图 注:ONSD为视神经鞘直径;Emean为平均杨氏模量
1
Zoerle T, Beqiri E, Åkerlund C, et al. Intracranial pressure monitoring in adult patients with traumatic brain injury: challenges and innovations [J]. Lancet Neurol, 2024, 23(9): 938-950.
2
Maissan IM, Dirven PJ, Haitsma IK, et al. Ultrasonographic measured optic nerve sheath diameter as an accurate and quick monitor for changes in intracranial pressure [J]. J Neurosurg, 2015, 123(3): 743-747.
3
Optical Coherence Tomography Substudy Committee, NORDIC Idiopathic Intracranial Hypertension Study Group. Papilledema outcomes from the optical coherence tomography substudy of the idiopathic intracranial hypertension treatment trial [J]. Ophthalmology, 2015, 122(9): 1939-1945.e2.
4
Aletreby W, Alharthy A, Brindley PG, et al. Optic nerve sheath diameter ultrasound for raised intracranial pressure: a literature review and meta-analysis of its diagnostic accuracy [J]. J Ultrasound Med, 2022, 41(3): 585-595.
5
Taljanovic MS, Gimber LH, Becker GW, et al. Shear-wave elastography: basic physics and musculoskeletal applications [J]. Radiographics, 2017, 37(3): 855-870.
6
郭云云, 解翔, 彭梅, 等. ACR-TIRADS与C-TIRADS分类分别联合二维剪切波弹性成像对甲状腺结节分类的诊断效能——多中心回顾性研究 [J/OL]. 中华医学超声杂志(电子版), 2023, 20(5): 511-516.
7
张硕, 袁建军, 崔明哲, 等. 基于高频超声与剪切波弹性成像评估继发性淋巴水肿患者术后疗效的初步研究 [J/OL]. 中华医学超声杂志(电子版), 2025, 22(6): 547-555.
8
Razek A, Elsaid N, Belal T, et al. Combined accuracy of optic nerve sheath diameter, strain ratio, and shear wave elastography of the optic nerve in patients with idiopathic intracranial hypertension [J]. Ultrasonography, 2022, 41(1): 106-113.
9
Hirzallah MI, Lochner P, Hafeez MU, et al. Quality assessment of optic nerve sheath diameter ultrasonography: scoping literature review and Delphi protocol [J]. J Neuroimaging, 2022, 32(5): 808-824.
10
于明依, 姜利斌. 特发性颅内压增高所致视盘水肿诊断治疗研究现状与进展 [J]. 中华眼底病杂志, 2017, 33(5): 551-554.
11
王丹丹, 秦芩, 李芮, 等. 剪切波弹性成像检测健康成人视神经硬度的初步研究 [J]. 临床超声医学杂志, 2021, 23(6): 468-470.
12
Hamilton DR, Sargsyan AE, Melton SL, et al. Sonography for determining the optic nerve sheath diameter with increasing intracranial pressure in a porcine model [J]. J Ultrasound Med, 2011, 30(5): 651-659.
13
Asal N, Sayan CD, Gökçınar NB, et al. Evaluation of the optic nerve using strain and shear-wave elastography in pre-eclampsia [J]. Clin Radiol, 2019, 74(10): 813.e1-813.e9.
14
Guazzaroni M, Ferrari D, Lamacchia F, et al. Biomechanical properties of optic nerve and retrobulbar structures with 2D and 3D shear wave elastography in patients affected by glaucoma [J]. Clin Imaging, 2020, 61: 106-114.
15
Yuan H, Feng J, Lin X, et al. The effect of early vs. late CT-guided stereotactic hematoma aspiration on neurological function recovery in patients with hypertensive cerebral hemorrhage in the basal ganglia: a retrospective comparative cohort study [J]. Ann Palliat Med, 2022, 11(9): 2923-2929.
16
詹小林, 周燕, 陈冬冬, 等. 不同型号超声诊断仪的实时剪切波弹性成像测量正常涎腺弹性值的对比研究 [J]. 安徽医学, 2023, 44(6): 662-665.
