中华医学超声杂志(电子版) ›› 2026, Vol. 23 ›› Issue (03) : 244 -249. doi: 10.3877/cma.j.issn.1672-6448.2026.03.009

腹部超声影像学

超声联合弹性成像在乙型肝炎显著炎症评估中的价值
刘愿1, 窦健萍2, 冯卉1, 皋月娟1, 韩治宇1, 刘洋1, 李路1, 于杰3,()
  1. 1 100039 北京,中国人民解放军总医院第五医学中心超声诊断科
    2 100039 北京,中国人民解放军总医院第五医学中心介入超声科
    3 100853 北京,中国人民解放军总医院肿瘤医学部介入超声科
  • 收稿日期:2025-06-24 出版日期:2026-03-01
  • 通信作者: 于杰
  • 基金资助:
    国家自然科学基金重点项目(81627803)

Value of ultrasound combined with elastography in assessing significant hepatic inflammation in patients with hepatitis B

Yuan Liu1, Jianping Dou2, Hui Feng1, Yuejuan Gao1, Zhiyu Han1, Yang Liu1, Lu Li1, Jie Yu3,()

  1. 1 Department of Ultrasound Diagnosis, Fifth Medical Center of Chinese PLA General Hospital, Beijing 100039, China
    2 Department of Interventional Ultrasound, Fifth Medical Center of Chinese PLA General Hospital, Beijing 100039, China
    3 Department of Interventional Ultrasound, Oncology Medical Department of Chinese PLA General Hospital, Beijing 100853, China
  • Received:2025-06-24 Published:2026-03-01
  • Corresponding author: Jie Yu
引用本文:

刘愿, 窦健萍, 冯卉, 皋月娟, 韩治宇, 刘洋, 李路, 于杰. 超声联合弹性成像在乙型肝炎显著炎症评估中的价值[J/OL]. 中华医学超声杂志(电子版), 2026, 23(03): 244-249.

Yuan Liu, Jianping Dou, Hui Feng, Yuejuan Gao, Zhiyu Han, Yang Liu, Lu Li, Jie Yu. Value of ultrasound combined with elastography in assessing significant hepatic inflammation in patients with hepatitis B[J/OL]. Chinese Journal of Medical Ultrasound (Electronic Edition), 2026, 23(03): 244-249.

目的

评估应用超声联合弹性成像构建的模型对乙型肝炎显著炎症的诊断性能。

方法

本研究为多中心前瞻性研究。2020年10月至2022年3月从6家医疗机构招募慢性乙型肝炎患者。患者均行肝穿刺活检及超声联合弹性成像检查。依据Scheuer评分评估乙型肝炎炎症活动,将病理炎症程度分为不显著炎症(Scheuer评分≤G1期)和显著炎症(Scheuer评分≥G2期)。将患者分为训练集(来自3个中心)、验证集(来自1个中心)和测试集(来自2个中心)。运用随机森林方法分析生物标志物、超声参数、人口学特征变量,采用逐步回归方法进行特征变量筛选,得出最优子集,纳入Logistc逻辑回归构建模型,绘制模型在3个数据集中诊断乙型肝炎显著炎症(≥G2期)的ROC曲线,并与传统炎症评估方法[丙氨酸氨基转移酶(ALT)、天冬氨酸氨基转移酶(AST)、ALT及AST≥5倍正常值]的性能进行比较。

结果

共792例患者纳入本研究,将其分为训练集463例、验证集166例、测试集163例。总共纳入19个协变量,经筛选确定7个超声特征变量[剪切波传播速度(Vs)、弹性成像(E)、肝脏超声联合弹性成像相关指标A指数(A Index)、门静脉流速、脾脏长度、脾脏厚度、腹壁厚度]纳入Logistic 回归模型,该模型在训练集中的ROC曲线下面积(AUC)为 0.831(95%CI:0.794~0.868),验证集中AUC为0.758(95%CI:0.681~0.834),测试集中AUC为0.726(95%CI:0.645~0.808)。ALT在训练集、验证集、测试集中AUC分别为0.501、0.537、0.540;AST在训练集、验证集、测试集中的AUC分别为0.516、0.436、0.491。ALT及AST≥5倍正常值在训练集、验证集、测试集中AUC分别为0.508、0.519、0.481。

结论

超声联合弹性成像技术在评估乙型肝炎显著炎症中具有较高且稳定的诊断效能,显著优于传统评估方法,可为慢性乙型肝炎患者抗炎治疗提供参考依据。

Objective

To evaluate the diagnostic performance of a model constructed based on ultrasound combined with elastography for significant hepatic inflammation in patients with chronic hepatitis B.

Methods

This was a multicenter prospective study, in which patients with chronic hepatitis B were recruited from six medical institutions between October 2020 and March 2022. All patients underwent liver needle biopsy and combined ultrasound-elastography examination. Hepatic inflammatory activity was graded according to the Scheuer scoring system, and pathological inflammation was classified as either non-significant (Scheuer score ≤G1) or significant (Scheuer score ≥G2). The patients were divided into a training set (from 3 centers), a validation set (from 1 center), and a test set (from 2 centers). Biomarkers, ultrasound parameters and demographic characteristics were analyzed using the random forest method. Stepwise regression was used for feature selection to obtain the optimal subset, which was incorporated into logistic regression to establish a diagnostic model. Receiver operating characteristic (ROC) curves were generated to evaluate the model's performance in diagnosing significant hepatic inflammation (≥G2) in the three datasets, and its performance was then compared with traditional inflammatory assessment methods, including alanine aminotransferase (ALT), aspartate aminotransferase (AST), and both ALT and AST ≥5 times the upper limit of normal (ULN).

Results

A total of 792 patients were enrolled, including 463 in the training set, 166 in the validation set, and 163 in the test set. Nineteen covariates were initially included, and seven ultrasound features were selected for inclusion in the logistic regression model (named "Best Features"), including shear wave velocity (Vs), elastography (E), A index (liver combined elastography indicator), portal vein flow velocity, splenic length, splenic thickness, and abdominal wall thickness. The area under the ROC curve (AUC) of this model was 0.831 (95% confidence interval [CI]: 0.794–0.868) in the training set, 0.758 (95%CI: 0.681–0.834) in the validation set, and 0.726 (95%CI: 0.645–0.808) in the test set. In the training, validation, and test sets, the AUC values were 0.501, 0.537, and 0.540 for ALT, 0.516, 0.436, and 0.491 for AST, and 0.508, 0.519, and 0.481 for the combination of both ALT and AST ≥5 times ULN.

Conclusion

Ultrasound combined with elastography demonstrates high and stable diagnostic efficacy in evaluating significant hepatic inflammation in chronic hepatitis B, significantly outperforms traditional assessment methods, and can serve as a valuable reference for anti-inflammatory treatment in patients with chronic hepatitis B.

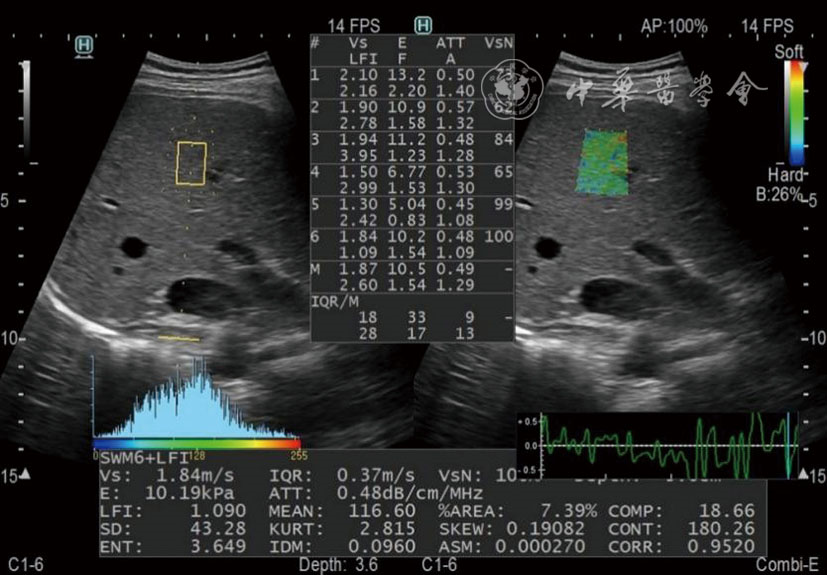

图1 肝脏超声联合弹性成像
表1 训练集、验证集和测试集一般资料比较
基线特征 训练集(n=463) 验证集(n=166) 测试集(n=163) 统计值 P
年龄(岁,
±s
41±11 40±11 42±11 F=1.19 0.305
男性[例(%)] 170(36.7) 71(42.8) 63(38.6) χ2=1.90 0.387
体质量指数(kg/m2
±s
23.1±3.1 23.4±3.4 23.6±3.1 F=1.83 0.162
脾脏厚度(mm,
±s
35±8 35±7 34±7 F=1.58 0.206
脾脏长度(mm,
±s
103±22 101±19 103±20 F=0.69 0.501
腹壁厚度(mm,
±s
16.0±3.9 16.7±3.9 15.9±3.8 F=2.31 0.100
门静脉流速(m/s,
±s
21±6 21±6 21±8 F=0.03 0.973
门静脉内径(mm,
±s
10.89±1.46 10.97±1.57 10.97±1.58 F=0.30 0.739
剪切波速度(m/s,
±s
1.88±5.15 1.56±0.41 1.62±0.47 F=0.53 0.592
剪切波E(
±s
8.5±5.0 7.8±4.7 8.5±5.4 F=1.35 0.261
检测深度(mm,
±s
3.98±0.62 3.99±0.57 3.92±0.55 F=0.65 0.524
A指数(
±s
1.12±0.45 1.07±0.35 1.09±0.35 F= 0.98 0.377
接受抗病毒治疗[例(%)] 90(19.4) 34(20.5) 39(23.9) χ2=1.49 0.475
乙肝表面抗体[例(%)] - 0.211
<2 mIU/ml 383(82.7) 141(84.9) 134(82.2)
2~≤10 mIU/ml 56(12.1) 11(6.6) 20(12.3)
10~100 mIU/ml 20(4.3) 9(5.4) 7(4.3)
>100 mIU/ml 4(0.9) 5(3.0) 2(1.2)
乙肝表面抗原[例(%)] χ2=4.14 0.388
<1000 IU/ml 209(45.1) 85(51.2) 83(50.9)
1000~2000 IU/ml 65(14.0) 25(15.1) 18(11.0)
>2000 IU/ml 189(40.8) 56(33.7) 62(38.0)
乙肝病毒脱氧核糖核酸[例(%)] χ2=3.19 0.785
<2000 IU/ml 244(52.7) 88(53.0) 83(50.9)
2000~≤104 IU/ml 51(11.0) 16(9.6) 18(11.0)
104~107 IU/ml 80(17.3) 26(15.7) 35(21.5)
>107 IU/ml 88(19.0) 36(21.7) 27(16.6)
ALT及AST同时≥5倍正常值[例(%)] χ2=2.01 0.365
326(70.4) 109(65.6) 107(65.6)
137(29.5) 57(34.3) 56(34.3)

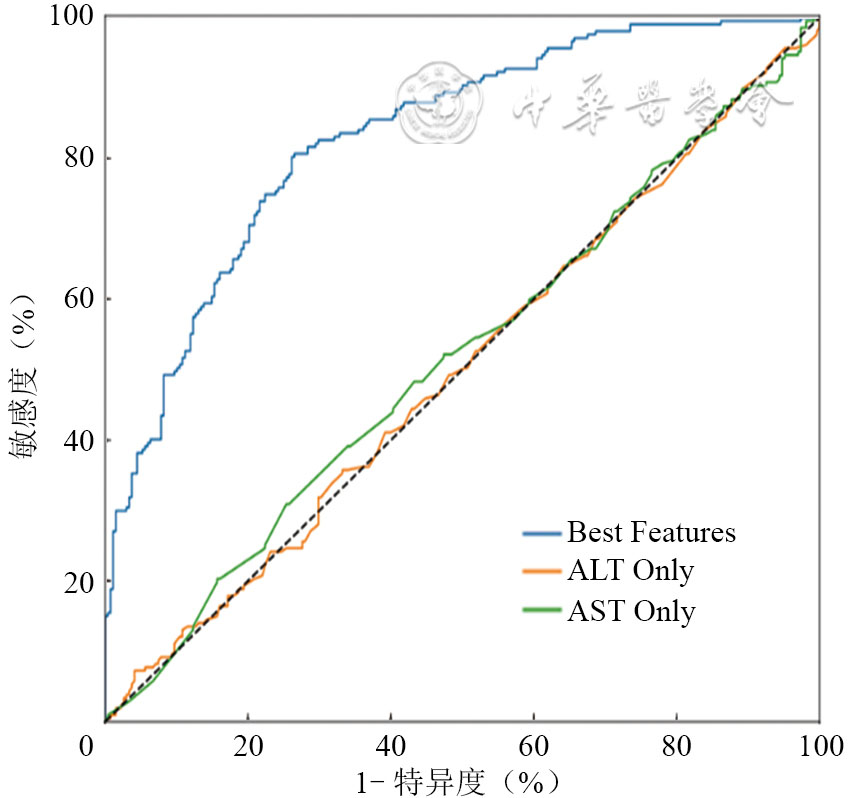

图2 3种Logistic回归模型在训练集中诊断乙型肝炎显著炎症的ROC曲线 注:Best Features为纳入7个特征变量(弹性成像、剪切波传播速度、A 指数、门静脉流速、脾脏长度、脾脏厚度、腹壁厚度)的模型;ALT Only为仅纳入丙氨酸氨基转移酶的模型;AST Only为仅纳入天冬氨酸氨基转移酶的模型

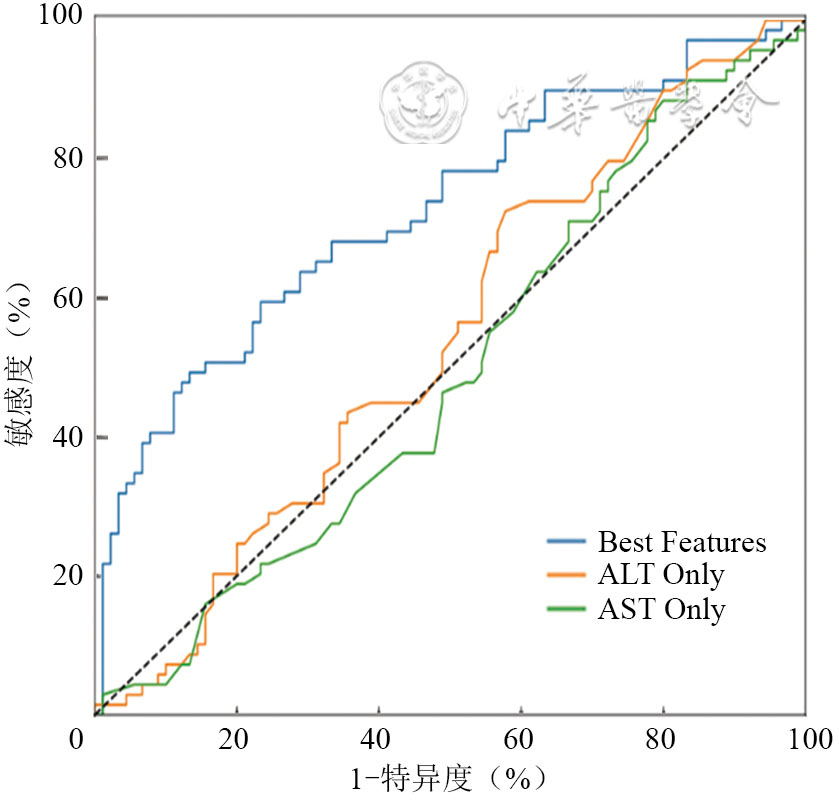

图3 3种Logistic回归模型在测试集中诊断乙型肝炎显著炎症的ROC曲线 注:Best Features为纳入7个特征变量(弹性成像、剪切波传播速度、A 指数、门静脉流速、脾脏长度、脾脏厚度、腹壁厚度)的模型;ALT Only为仅纳入丙氨酸氨基转移酶的模型;AST Only为仅纳入天冬氨酸氨基转移酶的模型

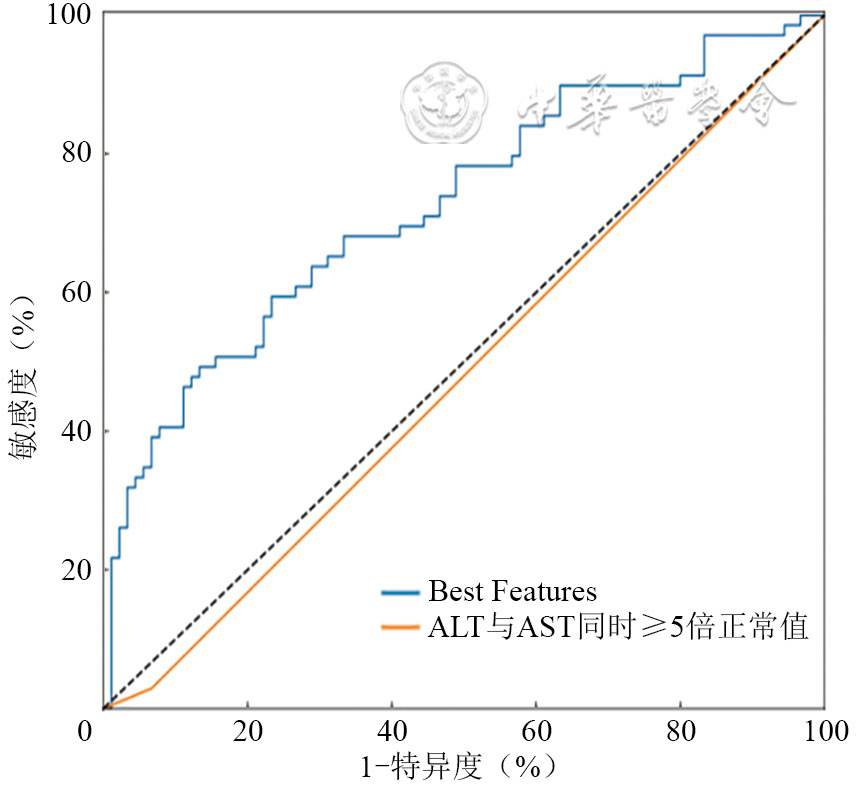

图4 2种Logistic回归模型在测试集中诊断乙型肝炎显著炎症的ROC曲线 注:Best Features为纳入7个特征变量(弹性成像、剪切波传播速度、A 指数、门静脉流速、脾脏长度、脾脏厚度、腹壁厚度)的模型;ALT为丙氨酸氨基转移酶;AST为天冬氨酸氨基转移酶
1
Paik JM, Golabi P, Younossi Y, et al. Changes in the global burden of chronic liver diseases from 2012 to 2017: the growing impact of NAFLD[J]. Hepatology, 2020, 72(5): 1605-1616.
2
Su S, Wong WC, Zou Z, et al. Cost-effectiveness of universal screening for chronic hepatitis B virus infection in China: an economic evaluation[J]. Lancet Global Health, 2022, 10(2): e278-e287.
3
中华医学会肝病学分会. 扩大慢性乙型肝炎抗病毒治疗的专家意见[J].中华肝脏病杂志, 2022, 30(2): 131-136.
4
程广文, 丁红, 陈坤, 等. 实时双幅联合弹性成像在慢性肝病肝纤维化与炎症分层诊断中的价值[J/OL]. 中华医学超声杂志(电子版), 2023, 20(1): 63-69.
5
European Association for the Study of the Liver. EASL clinical practice guidelines on non-invasive tests for evaluation of liver disease severity and prognosis: 2021 update[J]. J Hepatol, 2021, 75(3): 659-689.
6
Zhang C, Li JW, Wu Z, et al. Significant histologic changes are not rare in treatment-naive hepatitis B patients with normal alanine aminotransferase level: a meta-analysis[J]. J Clin Transl Hepatol, 2021, 9(5): 615-625.
7
Hazzan R, Regev-Sadeh T, Dola T, et al. Ultrasound shear wave elastography and shear wave dispersion: correlation with histopathological changes in autoimmune hepatitis patients[J]. Ultrasound Med Biol, 2025, 51(5): 823-829.
8
Barr RG, Ferradioli G, Palmeri ML, et al. Elastography assessment of liver fibrosis: Society of Radiologists in Ultrasound consensus conference statement[J]. Ultrasound Q, 2016, 32(2): 94-107.
