中华医学超声杂志(电子版) ›› 2026, Vol. 23 ›› Issue (04) : 271 -275. doi: 10.3877/cma.j.issn.1672-6448.2026.04.002

浅表器官超声影像学

L33-8s高频线阵超声探头在眼部睫状体离断诊断中的应用价值
崔蕊, 杨文利(), 李栋军, 王子杨, 陈伟, 李逸丰, 沈琳, 刘倩, 李逸凡, 刘宸琛
  1. 100730 北京,首都医科大学附属北京同仁医院 北京同仁眼科中心 眼科学与视觉科学北京市重点实验室
  • 收稿日期:2025-10-15 出版日期:2026-04-01
  • 通信作者: 杨文利
  • 基金资助:
    国家重点研发计划(2018YFC0116000)

Diagnostic value of the L33-8s linear array ultrasound probe in ciliary body detachment

Rui Cui, Wenli Yang(), Dongjun Li, Ziyang Wang, Wei Chen, Yifeng Li, Lin Shen, Qian Liu, Yifan Li, Chenchen Liu

  1. Beijing Tongren Eye Center, Beijing Tongren Hospital, Capital Medical University, Beijing Ophthalmology & Visual Sciences Key Laboratory, Beijing 100730, China
  • Received:2025-10-15 Published:2026-04-01
  • Corresponding author: Wenli Yang
引用本文:

崔蕊, 杨文利, 李栋军, 王子杨, 陈伟, 李逸丰, 沈琳, 刘倩, 李逸凡, 刘宸琛. L33-8s高频线阵超声探头在眼部睫状体离断诊断中的应用价值[J/OL]. 中华医学超声杂志(电子版), 2026, 23(04): 271-275.

Rui Cui, Wenli Yang, Dongjun Li, Ziyang Wang, Wei Chen, Yifeng Li, Lin Shen, Qian Liu, Yifan Li, Chenchen Liu. Diagnostic value of the L33-8s linear array ultrasound probe in ciliary body detachment[J/OL]. Chinese Journal of Medical Ultrasound (Electronic Edition), 2026, 23(04): 271-275.

目的

探讨L33-8s高频线阵超声探头在眼部睫状体离断诊断中的应用价值。

方法

选取2024年6月至2025年8月在北京同仁医院眼科就诊的经超声生物显微镜(UBM)检查确诊为睫状体离断的30例患者(30只患眼)作为病例组,另选取对侧健康眼30只作为对照组。所有纳入眼分别采用L33-8s与L20-5s线阵探头进行超声检查,以UBM结果为金标准,计算2种探头的诊断敏感度、特异度、阳性预测值、阴性预测值及准确性,采用McNemar检验比较2种探头诊断敏感度和准确性的差异,采用四格表χ2检验比较阴性预测值的差异。绘制受试者操作特征(ROC)曲线评估2种超声探头的诊断效能,计算曲线下面积(AUC)。根据UBM所示睫状体离断范围,将病例组眼分为1~4级,计算2种探头对不同分级睫状体离断的检出率。

结果

L33-8s探头诊断睫状体离断的敏感度为86.7%(26/30),阴性预测值为88.2%,准确性为93.3%;L20-5s探头的诊断敏感度为63.3%(19/30),阴性预测值为73.2%,准确性为81.7%;L33-8s探头的诊断敏感度及准确性高于L20-5s探头,差异具有统计学意义(χ2=5.143,P=0.023;χ2=5.143,P=0.023),阴性预测值高于L20-5s探头,差异无统计学意义(P>0.05)。2种探头的诊断特异度及阳性预测值均为100%。ROC曲线分析显示,L33-8s探头的AUC为0.933,高于L20-5s探头的0.817。L33-8s探头对1级和2级睫状体离断的检出率高于L20-5s探头(75.0% vs 33.3%;90.0% vs 70.0%)。

结论

L33-8s高频探头可提高对睫状体离断的诊断效能,对小范围(低分级)睫状体离断的诊断优势明显。

Objective

To evaluate the diagnostic value of the L33-8s linear array ultrasound probe in detecting ciliary body detachment (CBD).

Methods

A total of 30 patients (30 eyes) diagnosed with CBD by ultrasound biomicroscopy (UBM) at the Department of Ophthalmology, Beijing Tongren Hospital from June 2024 to August 2025 were included in the case group, while the 30 contralateral healthy eyes were used as controls. All enrolled eyes were examined with both the L33-8s and L20-5s linear array probes. Taking UBM findings as the gold standard, the sensitivity, specificity, positive predictive value, negative predictive value, and accuracy of both probes were calculated. The McNemar's test was used to compare the differences in sensitivity and accuracy, and a 2×2 chi-square test was used to compare the difference in negative predictive value. Receiver operating characteristic (ROC) curves were plotted, and the area under the curve (AUC) was calculated to evaluate diagnostic capability. The case group was classified into grades 1–4 based on the extent of CBD detected by UBM, and the detection rates of the two probes across different grades were compared.

Results

The L33-8s probe demonstrated a sensitivity of 86.7% (26/30), negative predictive value of 88.2%, and accuracy of 93.3%, while the L20-5s probe yielded corresponding values of 63.3% (19/30), 73.2%, and 81.7%. Statistically significant differences were observed between the two probes in both sensitivity (χ2=5.143, P=0.023) and accuracy (χ2=5.143, P=0.023). The negative predictive value of the L33-8s probe was higher than that of the L20-5s probe, but the difference was not statistically significant (P>0.05). Both probes demonstrated a specificity and positive predictive value of 100%. ROC curve analysis showed that the AUC of the L33-8s probe was 0.933, which was higher than that of the L20-5s probe (AUC=0.817). The L33-8s probe had significantly higher detection rates for grade 1 and grade 2 CBD than the L20-5s probe (75.0% vs 33.3%; 90.0% vs 70.0%).

Conclusion

The L33-8s probe demonstrates superior diagnostic performance for CBD compared with the L20-5s probe, especially for cases with a small extent of detachment.

图1 54岁男性患者,右眼外伤,超声生物显微镜检查(图a)确诊为2级睫状体离断(12:00~3:30,共3.5个钟点位),L20-5s探头(图b)、L33-8s探头(图c)均可见睫状体与巩膜回声完全分离,睫状体上腔与前房相交通 注:黄色箭头所示结构为睫状体,红色箭头所示结构为巩膜
图2 62岁男性患者,右眼外伤,超声生物显微镜检查(图a)确诊为1级睫状体离断(6:30~8:00,共1.5个钟点位),L20-5s探头见睫状体边界模糊,未明确显示分离征象(图b),L33-8s探头可见睫状体与巩膜回声完全分离(图c) 注:黄色箭头所示结构为睫状体,红色箭头所示结构为巩膜
表1 L20-5s及L33-8s型超声探头诊断睫状体离断的效能比较(%)

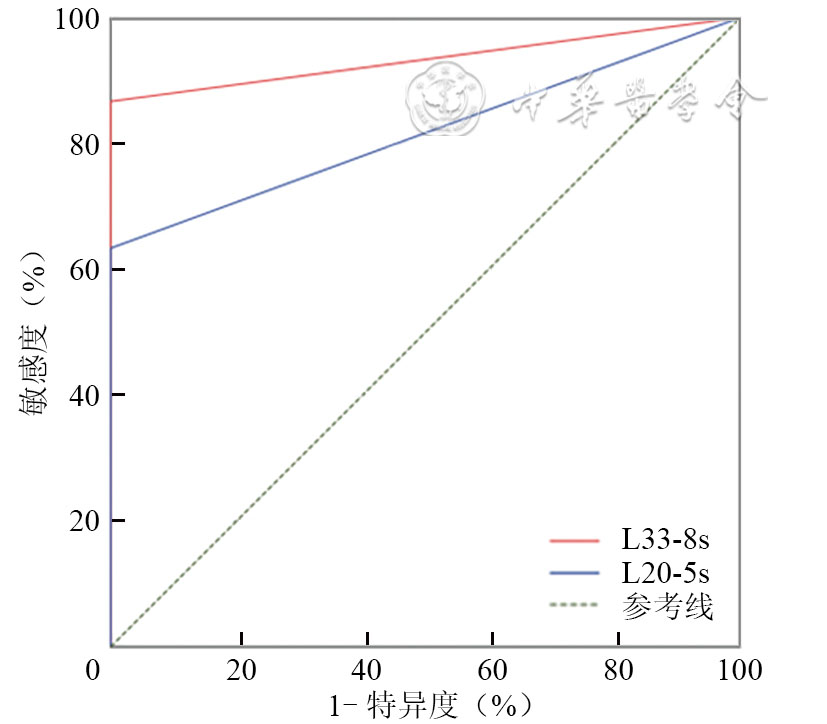

图3 L20-5s及L33-8s型超声探头诊断睫状体离断的受试者操作特征曲线
1
Bourguignon C, Dequinze M, Marchand S. Post-traumatic cyclodialysis clefts [J]. Rev Med Liege, 2025, 80(7-8): 473-477.
2
张淳, 肖睿涵, 邱婉璐, 等. 睫状体断离的研究进展 [J]. 中华眼外伤职业眼病杂志, 2021, 43(11): 875-880.
3
Sethi A, Udenia H, Beri N, et al. Surgical management of cyclodialysis cleft: an update [J]. J Curr Glaucoma Pract, 2025, 19(3): 143-152.
4
Teoh CS, Aquino MC, Lim DK, et al. Use of anterior segment imaging and direct cyclopexy repair of cyclodialysis cleft [J]. Taiwan J Ophthalmol, 2022, 12(2): 213-218.
5
赵红, 李新玉, 郑广瑛. 超声生物显微镜在外伤性睫状体断离诊断和手术中的价值 [J]. 中华眼外伤职业眼病杂志, 2021, 43(11): 801-805.
6
彩色多普勒血流成像在眼部疾病诊断应用的专家共识(2024)专家组, 中国医师协会眼科医师分会眼超声诊断专业委员会. 彩色多普勒血流成像在眼部疾病诊断应用的专家共识(2024) [J]. 中华实验眼科杂志, 2024, 42(9): 785-797.
7
Berk TA, Peretz D, Mofti A, et al. Non-invasive monitoring of cyclodialysis cleft using anterior segment optical coherence tomography and its role in informing clinical treatment decisions [J]. Am J Ophthalmol Case Rep, 2022, 26: 101410.
8
王开芳, 于广委, 王燕, 等. CASIA2型前节OCT在眼球穿通伤中观察睫状体的应用 [J]. 眼科, 2023, 32(2): 132-134.
9
Fernández-Vigo JI, Kudsieh B, Shi H, et al. Diagnostic imaging of the ciliary body: Technologies, outcomes, and future perspectives [J]. Eur J Ophthalmol, 2022, 32(1): 75-88.
10
Shokoohi H, Chu D, Al Jalbout N. Ultrasound physics [J]. Emerg Med Clin North Am, 2024, 42(4): 711-730.
11
Kim MG, Yoon C, Lim HG. Recent advancements in high-frequency ultrasound applications from imaging to microbeam stimulation [J]. Sensors (Basel), 2024, 24(19): 6471.
12
陈畅. 高频超声筛查眼科疾病的临床价值 [J]. 影像研究与医学应用, 2021, 5(24): 137-139.
13
沈琳, 沈志军, 杨文利, 等. 特发性葡萄膜渗漏综合征的超声影像表现 [J]. 中华眼底病杂志, 2025, 41(5): 381-385.
14
Bezerra LG, Morales MSA, Ramos MHMC, et al. Color doppler blood flow analysis in circumscribed choroidal hemangioma [J]. Arq Bras Oftalmol, 2025, 88(4): e20240167.
