中华医学超声杂志(电子版) ›› 2026, Vol. 23 ›› Issue (01) : 47 -52. doi: 10.3877/cma.j.issn.1672-6448.2026.01.007

妇产科超声影像学

中晚孕期正常胎儿主动脉脉搏波传导速度的初步研究
童雪怡, 曾施(), 刘玉姗, 徐哲, Abdoul Rachid ABOUBACAR HAMIDOU
  1. 410011 长沙,中南大学湘雅二医院超声诊断科
  • 收稿日期:2025-07-08 出版日期:2026-01-01
  • 通信作者: 曾施
  • 基金资助:
    国家自然科学基金项目(81871372); 湖南省自然科学基金项目(2023JJ30743); 湖南省卫生健康委高层次人才项目(20240304069); 长沙市自然科学基金项目(kq2208341)

Pulse wave velocity in the aorta of normal fetuses during second and third trimesters: a preliminary study

Xueyi Tong, Shi Zeng(), Yushan Liu, Zhe Xu, Abdoul Rachid ABOUBACAR HAMIDOU

  1. Department of Ultrasound Diagnosis, The Second Xiangya Hospital, Central South University, Changsha 410011, China
  • Received:2025-07-08 Published:2026-01-01
  • Corresponding author: Shi Zeng
引用本文:

童雪怡, 曾施, 刘玉姗, 徐哲, Abdoul Rachid ABOUBACAR HAMIDOU. 中晚孕期正常胎儿主动脉脉搏波传导速度的初步研究[J/OL]. 中华医学超声杂志(电子版), 2026, 23(01): 47-52.

Xueyi Tong, Shi Zeng, Yushan Liu, Zhe Xu, Abdoul Rachid ABOUBACAR HAMIDOU. Pulse wave velocity in the aorta of normal fetuses during second and third trimesters: a preliminary study[J/OL]. Chinese Journal of Medical Ultrasound (Electronic Edition), 2026, 23(01): 47-52.

目的

应用双脉冲多普勒技术探讨中晚孕期胎儿主动脉脉搏波传导速度(PWV)与孕龄及心脏各瓣环内径的相关性及宫内发育特点。

方法

前瞻性收集2024年10月至2025年3月在中南大学湘雅二医院超声医学科行胎儿超声检查的中晚孕期(18~39+6周)正常胎儿。使用双脉冲多普勒技术测量中晚孕期正常胎儿主动脉PWV,获得149例胎儿升主动脉PWV和201例胎儿降主动脉PWV。比较升主动脉与降主动脉PWV;分析升主动脉、降主动脉PWV与孕龄及心脏各瓣环内径[二尖瓣瓣环(MV)、三尖瓣瓣环(TV)、主动脉瓣环(AV)及肺动脉瓣环(PAV)]的相关性;拟合多种回归模型,选出最佳拟合曲线。

结果

中晚孕期正常胎儿升主动脉、降主动脉PWV随孕龄增加而增加(r=0.30、0.38,P均<0.01),以Sigmoid曲线拟合度最佳。降主动脉PWV在中孕期和晚孕期均明显大于升主动脉PWV,中孕期降主动脉与升主动脉PWV比较[(2.22±0.44)m/s vs(1.03±0.42)m/s],差异有统计学意义(P<0.01);晚孕期降主动脉与升主动脉PWV比较[2.48(2.32,2.66)m/s vs 1.31(1.10,1.47)m/s],差异有统计学意义(P<0.01)。中晚孕期正常胎儿升主动脉、降主动脉PWV与各瓣环内径呈正相关(MV:r=0.26、0.34,TV:r=0.24、0.36,AV:r=0.28、0.33,PAV:r=0.28、0.39,P均<0.01)。

结论

本研究应用双脉冲多普勒技术发现胎儿主动脉PWV随孕龄增加而增加,揭示了胎儿主动脉PWV的节段性分布差异,有助于后期深入探索胎儿主动脉功能,为临床对胎儿主动脉弹性的定量评估提供了新的参考指标。

Objective

To investigate the correlation of fetal aortic pulse wave velocity (PWV) with gestational age and cardiac annulus diameters in the second and third trimesters of pregnancy, and to explore the specific characteristics of fetal intrauterine growth and development.

Methods

This prospective study included normal fetuses (gestational age: 18 weeks to 39+6 weeks) undergoing fetal ultrasound at the Second Xiangya Hospital from October 2024 to March 2025. Dual-gate Doppler ultrasound successfully acquired valid measurements for ascending aortic PWV in 149 cases and descending aortic PWV in 201 cases. PWV was compared between the ascending and descending aorta, and the correlation of ascending and descending aortic PWV with gestational age and diameters of cardiac annuli, including the mitral valve annulus (MV), tricuspid valve annulus (TV), aortic valve annulus (AV), and pulmonary valve annulus (PAV), were analyzed. Multiple regression models were constructed to determine the optimal curve fitting.

Results

Both ascending and descending aortic PWV showed a significant positive correlation with gestational age (r=0.30 and 0.38, respectively, both P<0.01), with a Sigmoid curve showing the best goodness of fit. Descending aortic PWV was significantly higher than ascending aortic PWV in both the second and third trimesters [second trimester: (2.22±0.44) m/s vs (1.03±0.42) m/s, P<0.01; third trimester: 2.48 (2.32, 2.66) m/s vs 1.31 (1.10, 1.47) m/s, P<0.01] Additionally, there was a positive correlation between ascending and descending aortic PWV and each cardiac annulus diameter in normal second and third trimester fetuses (MV: r=0.26 and 0.34; TV: r=0.24 and 0.36; AV: r=0.28 and 0.33; PAV: r=0.28 and 0.39; all P<0.01).

Conclusion

This study adopted the dual-pulse Doppler technique and demonstrated that fetal aortic PWV increases with gestational age, while also revealing segmental distribution differences in fetal aortic PWV. These findings facilitate further investigation of fetal aortic function and provide a novel reference indicator for the clinical quantitative assessment of fetal aortic elasticity.

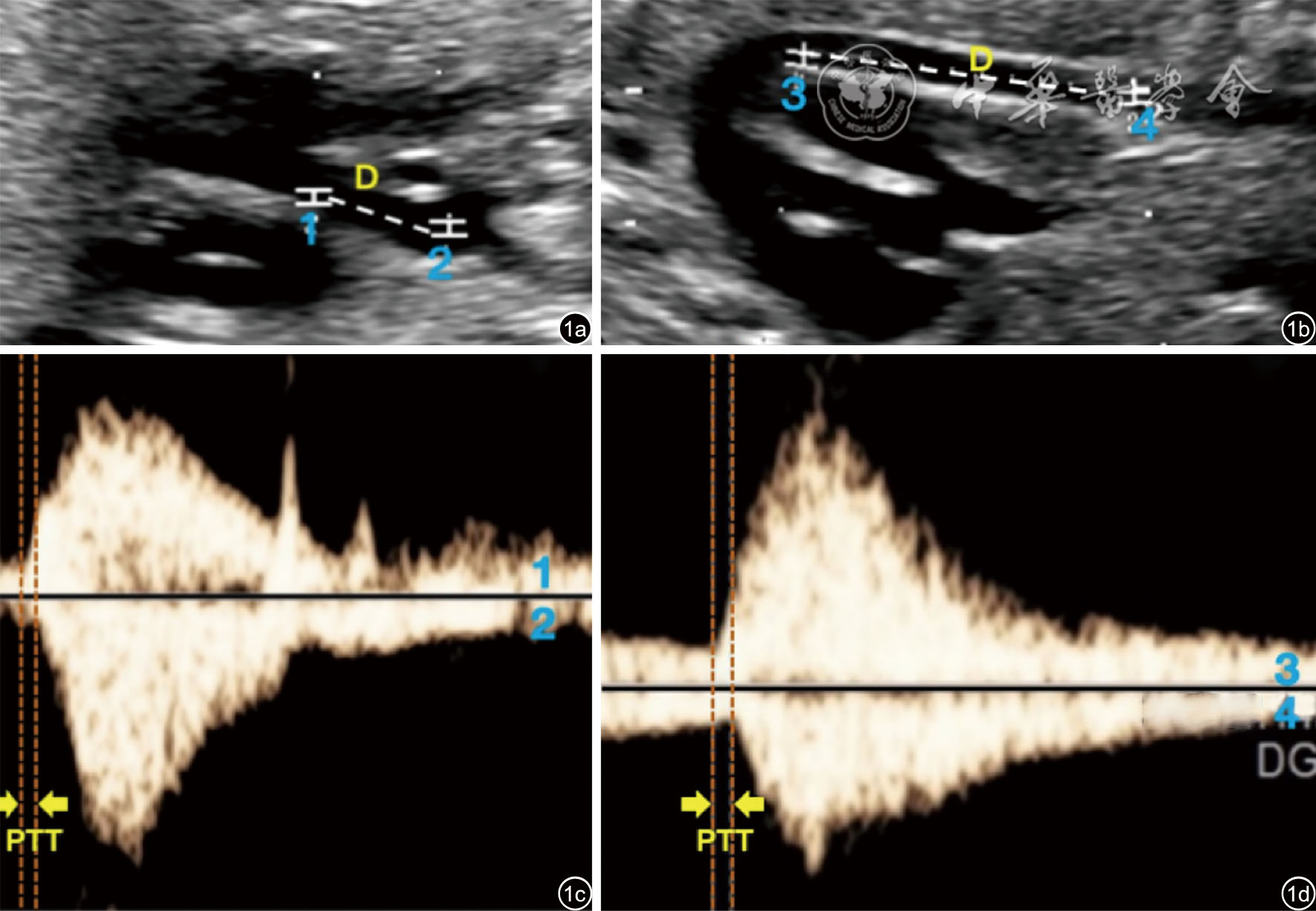

图1 胎儿主动脉脉搏波传导速度(PWV)分析。图a为胎儿升主动脉长轴切面二维图像(D表示升主动脉上近心点1与远心点2之间距离);图c为点1与点2分别对应的脉搏波频谱1、2(PTT表示同一心动周期内脉搏波由点1传播至点2的时间差);图b为胎儿降主动脉长轴切面二维图像(D表示降主动脉上近心点3与远心点4之间距离);图d为点3与点4分别对应的脉搏波频谱3、4(PTT表示同一心动周期内脉搏波由点3传播至点4的时间差);PWV=D/PTT
表1 升主动脉组与降主动脉组的临床特征及各瓣膜内径比较[MQ1Q3)]

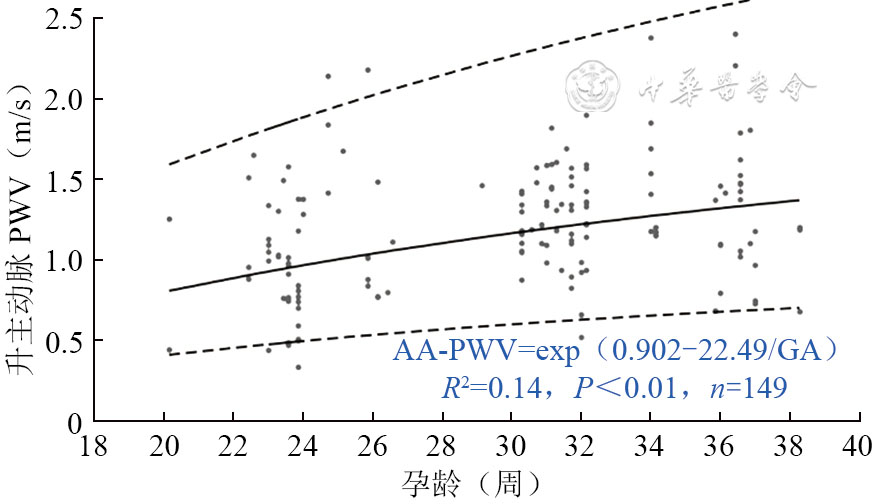

图2 胎儿升主动脉脉搏波传导速度随孕龄变化的相关性散点图及最佳拟合曲线图 注:AA-PWV为升主动脉脉搏波传导速度;GA为孕龄

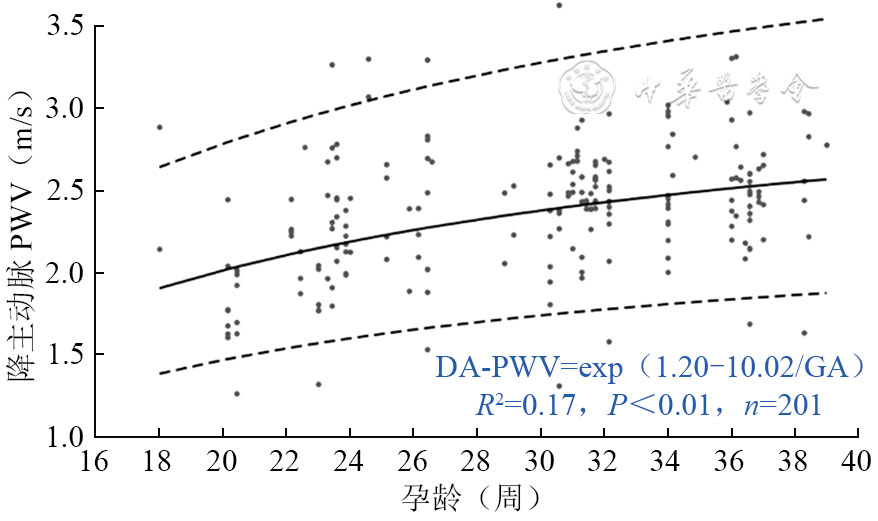

图3 胎儿降主动脉脉搏波传导速度随孕龄变化的相关性散点图及最佳拟合曲线图 注:DA-PWV为降主动脉脉搏波传导速度;GA为孕龄
1
Marshall AG, Neikirk K, Afolabi J, et al. Update on the use of pulse wave velocity to measure age-related vascular changes[J]. Curr Hypertens Rep, 2024, 26(3): 131-140.
2
赵鹏栋, 肖汉光, 任慧娇, 等. 基于脉搏波传导速度的动脉硬化无创检测方法进展[J]. 中国动脉硬化杂志, 2021, 29(1): 82-86.
3
O'Rourke MF, Staessen JA, Vlachopoulos C, et al. Clinical applications of arterial stiffness; definitions and reference values[J]. Am J Hypertens, 2002, 15(5): 426-444.
4
Laurent S, Cockcroft J, Van Bortel L, et al. Expert consensus document on arterial stiffness: methodological issues and clinical applications[J]. Eur Heart J, 2006, 27(21): 2588-2605.
5
Willum Hansen T, Staessen JA, Torp-Pedersen C, et al. Prognostic value of aortic pulse wave velocity as index of arterial stiffness in the general population[J]. Circulation, 2006, 113(5): 664-670.
6
Zhou D, Xu R, Zhou J, et al. Aortic elasticity and cardiac function in fetuses with aortic coarctation[J]. Front Cardiovasc Med, 2022, 9: 870683.
7
Xu R, Zhou D, Liu M, et al. Impaired ascending aortic elasticity in fetuses with tetralogy of Fallot[J]. Ultrasound Obstet Gynecol, 2023, 61(4): 497-503.
8
Zhou D, Xu R, Zhou J, et al. Impaired distensibility of the proximal aorta in fetuses with tetralogy of Fallot[J]. J Am Heart Assoc, 2023, 12(11): e028499.
9
Struijk PC, Migchels H, Mathews JV, et al. Fetal aortic distensibility, compliance and pulse pressure assessment during the second half of pregnancy[J]. Ultrasound Med Biol, 2013, 39(11): 1966-1975.
10
Miyashita S, Murotsuki J, Muromoto J, et al. Measurement of internal diameter changes and pulse wave velocity in fetal descending aorta using the ultrasonic phased-tracking method in normal and growth-restricted fetuses[J]. Ultrasound Med Biol, 2015, 41(5): 1311-1319.
11
Wang Z, Yang Y, Yuan LJ, et al. Noninvasive method for measuring local pulse wave velocity by dual pulse wave Doppler: in vitro and in vivo studies[J]. PloS One, 2015, 10(3): e0120482.
12
Ryo E, Seto M, Yatsuki K, et al. Measurement of pulse wave velocity in fetal descending aorta with dual doppler method: a preliminary study[J]. SN Compr Clin Med, 2021, 3: 1133-1136.
13
Wells SM, Walter EJ. Changes in the mechanical properties and residual strain of elastic tissue in the developing fetal aorta[J]. Ann Biomed Eng, 2010, 38: 345-356.
14
Wagenseil JE, Mecham RP. Vascular extracellular matrix and arterial mechanics[J]. Physiol Rev, 2009, 89(3): 957-989.
15
Davidson JM, Hill KE, Mason ML, et al. Longitudinal gradients of collagen and elastin gene expression in the porcine aorta[J]. J Biol Chem, 1985, 260(3): 1901-1908.
